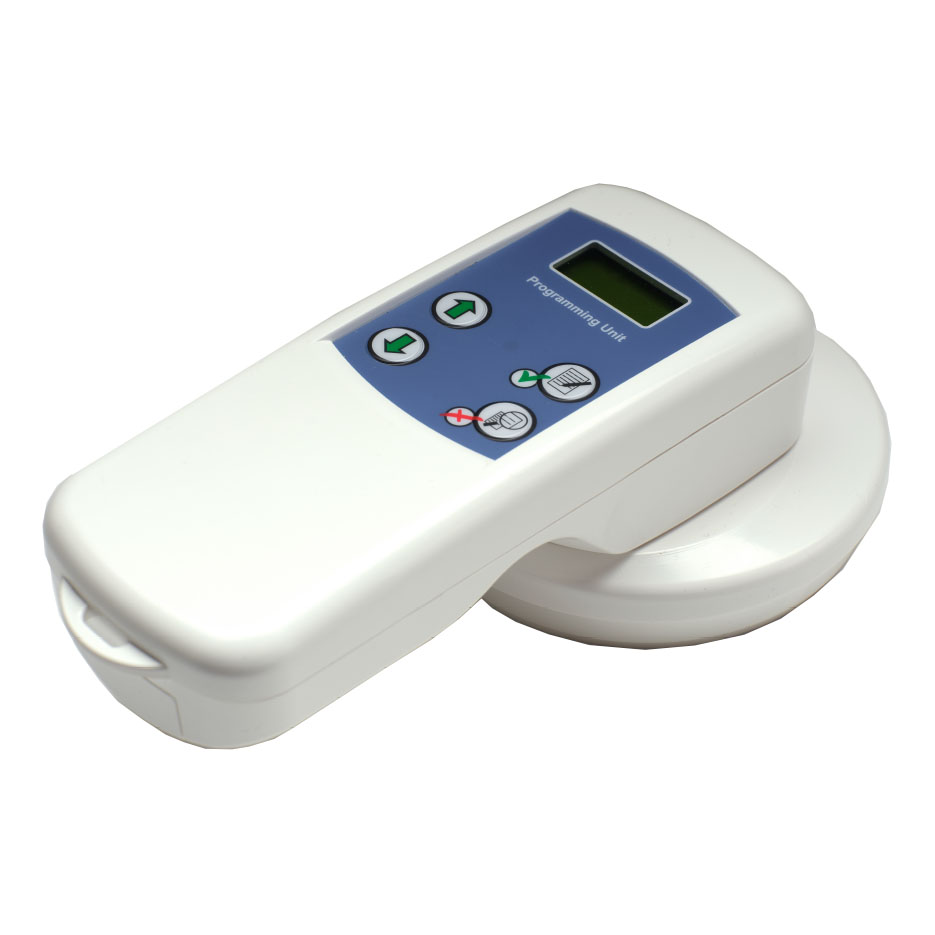

The Advanced AXIS-PU is the handheld programming unit for Advanced's EvacGo addressable device range. It sets and reads all the programmable variables of the devices, including the loop address.
It can also read a device's analogue value or change a heat detector setting from rate of rise to high temperature. With the connection lead you can program and read call points and sounders, add loop addresses, or set one of the sounder's 32 operating modes.
Key features
- Sets and reads device loop addresses and programmable variables
- Displays sensor analogue values
- Changes heat detector mode between rate of rise and high temperature
- Programs sounder operating modes (32 modes)
- Clear device display; easy to use
- Auto shut-off to save battery
- Includes programming cables for backwards compatibility
Technical specifications
-
Part code: AXIS-PU
-
Battery: 6LR61 type (9V)
-
Dimensions: 88 x 88 x 61mm
-
Operating temperature: -10°C to +55°C (no icing)
-
Maximum humidity: 95% RH (non-condensing)
-
Weight: 200g
