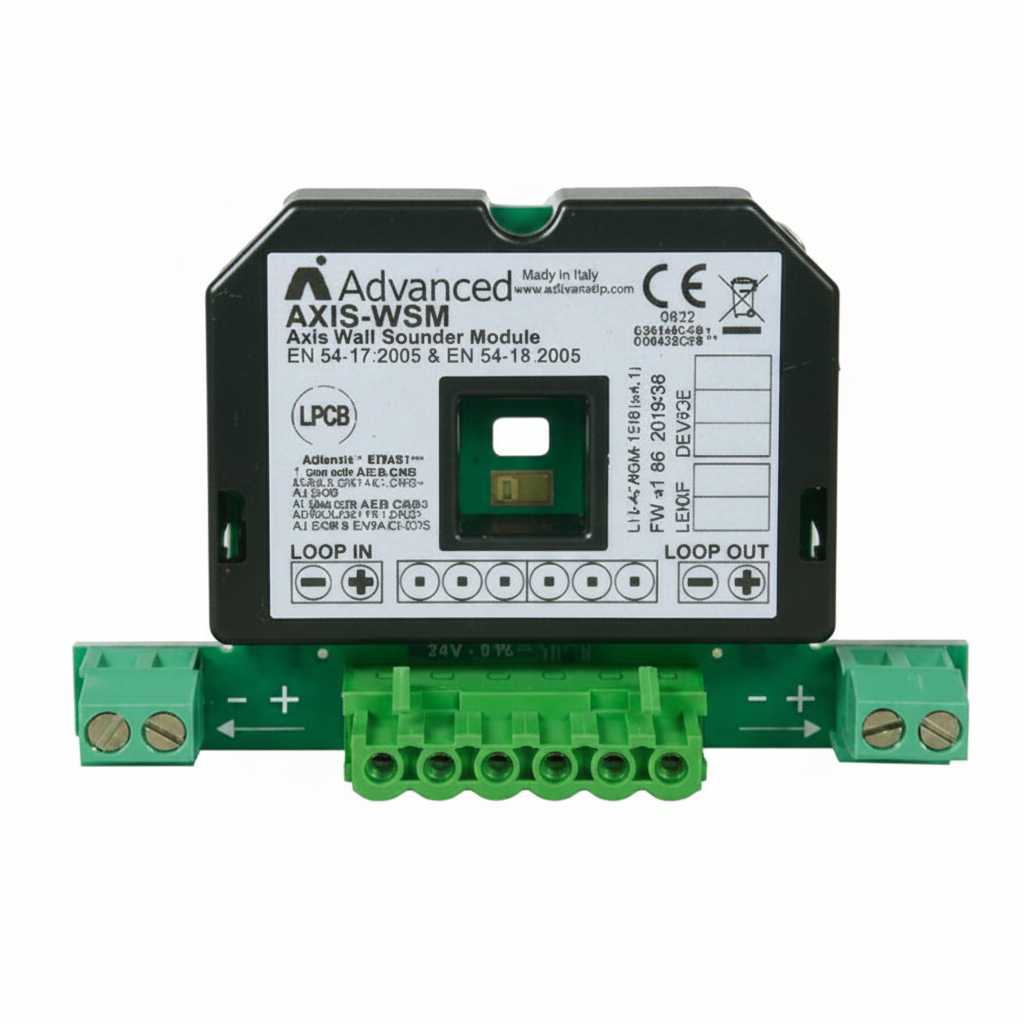

Advanced AXIS-WSM Intelligent Sounder Interface Module

The Advanced AXIS-WSM is an intelligent wall sounder interface module that allows the Axis-CWS conventional wall sounder and Axis-CWSV conventional sounder beacon to be used on an EvacGo intelligent loop. It is compatible with intelligent control panels and systems using the Axis EN protocol.

Once installed on an EvacGo loop the sounder becomes fully addressable, with the full range of intelligent control and monitoring functions. Addressing can be done with the device programming tool or automatically from the fire control panel, and the module has built-in short circuit isolation.

Key features

• Fits EvacGo modular wall sounders and sounder beacons
• Axis EN protocol
• Manual and auto addressing options
• Built-in short circuit isolators
• Up to 32 tones as standard
• Optional microphone self-test facility
• Easy to install, flexible modular design

Technical specifications

• Part code: AXIS-WSM
• Power supply voltage range: 15V DC - 40V DC
• Maximum alarm current: 5-8mA with sounder; 12-28mA with beacon
• Operating temperature: -10°C to +55°C
• Maximum humidity: 85% RH (non-condensing)
• Weight including back box: 27g
• IP rating: IP20
• Approvals: EN54-17:2005 short circuit isolators; EN54-18:2005 input/output devices
• Compatible sounders: Axis-CWS, Axis-CWS/W, Axis-CWSV, Axis-CWSV/W
