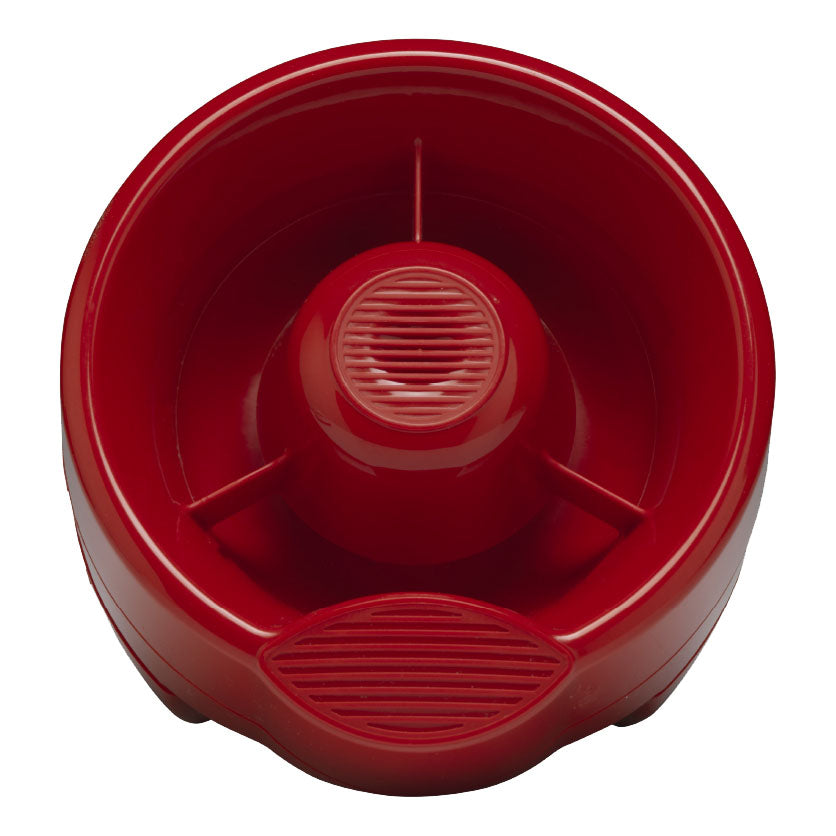

Advanced AXIS-CWS Conventional Wall Sounder (Red)

The Advanced AXIS-CWS is a red open-area conventional wall sounder from the EvacGo range. It can be used as a standalone conventional sounder, or as a loop-powered addressable device on an EvacGo intelligent loop when fitted with the Axis-WSM addressable sounder interface module.

It reproduces 32 tones with four volume settings selected by a DIP switch on the back of the sounder body; standard and alternative tones are selected by wiring connections when conventional, or through control panel programming when used with the Axis-WSM. The compact design gives wide-angle, uniform sound distribution and it includes built-in short circuit loop isolation.

Key features

• Approved for outdoor use to EN54-3 (Type B)
• 32 tone settings
• 4 adjustable volume settings
• Wide-angle uniform sound distribution
• Built-in short circuit loop isolation
• Flexible modular design, easy to install
• Red body (white version AXIS-CWS/W)

Technical specifications

• Part code: AXIS-CWS
• Colour: Red
• Power supply: 15 to 40V DC
• Alarm current (volume high, tone dependent): 5-8mA
• Audible frequency range: 440Hz - 2900Hz
• Maximum sound output (volume high): 100dB(A) ±3dB(A)
• Operating temperature (no icing): -25°C to +70°C
• Maximum humidity (non-condensing): 95% RH
• Diameter: 132mm
• Depth (base): 90mm (35mm)
• Weight (base included): 270g
• IP rating: IP21; IP65 not certified (independently assessed and certified to IPX5, not part of the EN54-3 certification)
• Approvals: EN54-3:2001+A1:2002+A2:2006
