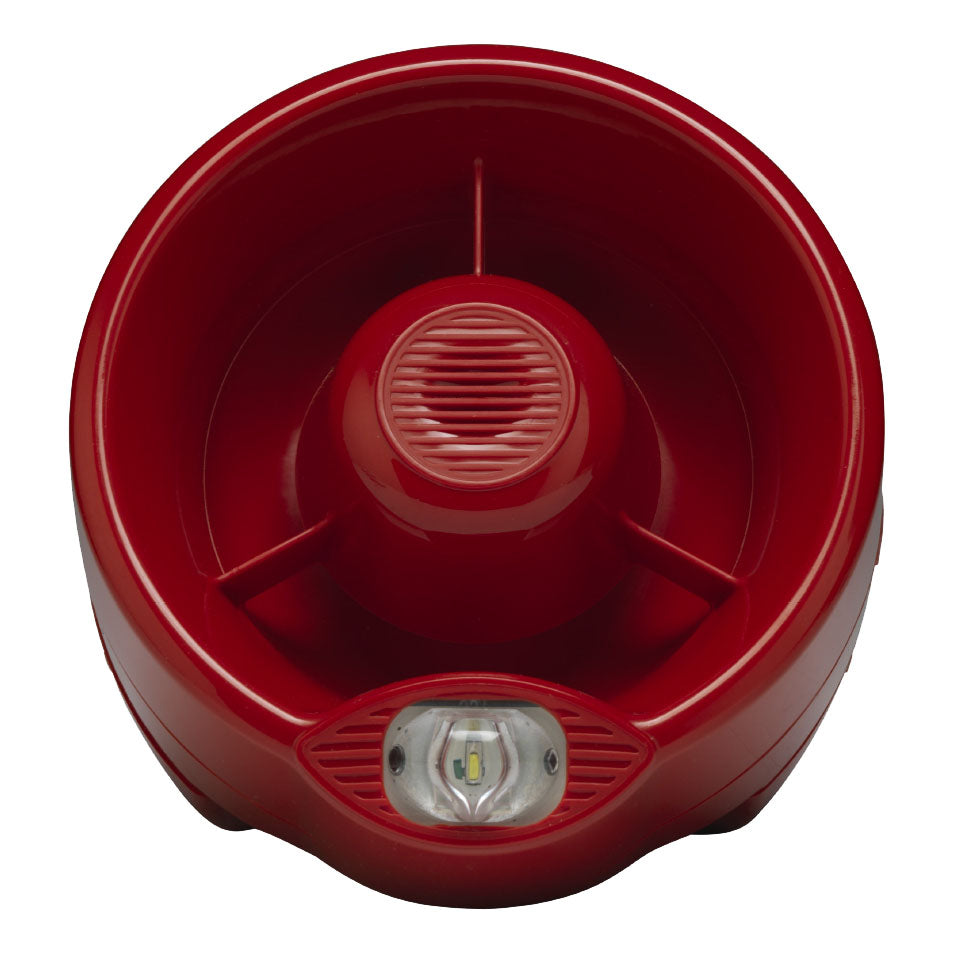

Advanced AXIS-CWSV Conventional Wall Sounder Beacon (Red)

The Advanced AXIS-CWSV is a red EvacGo open-area conventional wall sounder beacon, approved to EN 54-3 (Type B, outdoor) and EN 54-23. It can be used as a standalone conventional device, or as a loop-powered addressable unit with the addition of the AXIS-WSM intelligent addressable sounder interface module.

It offers 32 tones and four volume settings selected by DIP switch, a high-output LED beacon, and a silent sounder setting for beacon-only use. Built-in short-circuit loop isolation is included.

Key features

• Approved for outdoor use to EN 54-3 (Type B) and EN 54-23
• 32 tone settings, standard and alternative tones
• 4 adjustable volume settings
• High-output LED beacon
• Silent sounder setting for beacon-only use
• Wide-angle uniform sound distribution
• Built-in short-circuit loop isolation
• Addressable with the AXIS-WSM interface module

Technical specifications

• Part number: AXIS-CWSV
• Colour: Red
• Standards: EN 54-3:2001+A1:2002+A2:2006; EN 54-23:2010
• Power supply: 15 to 40V DC
• Alarm current: 12mA - 26mA (volume HIGH, tone dependent)
• Frequency range: 440Hz - 2900Hz (tone dependent)
• Maximum sound output: 100dB(A) ±3dB(A) (volume HIGH)
• VAD flash frequency: 0.5Hz
• VAD coverage: W 2.5-7 (122.5m³)
• Operating temperature: -25°C to +70°C (no icing)
• Humidity: 95% RH max (non-condensing)
• Dimensions: 132mm diameter; 90mm depth (base 35mm)
• Weight: 290g including base
• IP rating: IP21 (certified); IP65 (not part of EN 54-3 certification)
