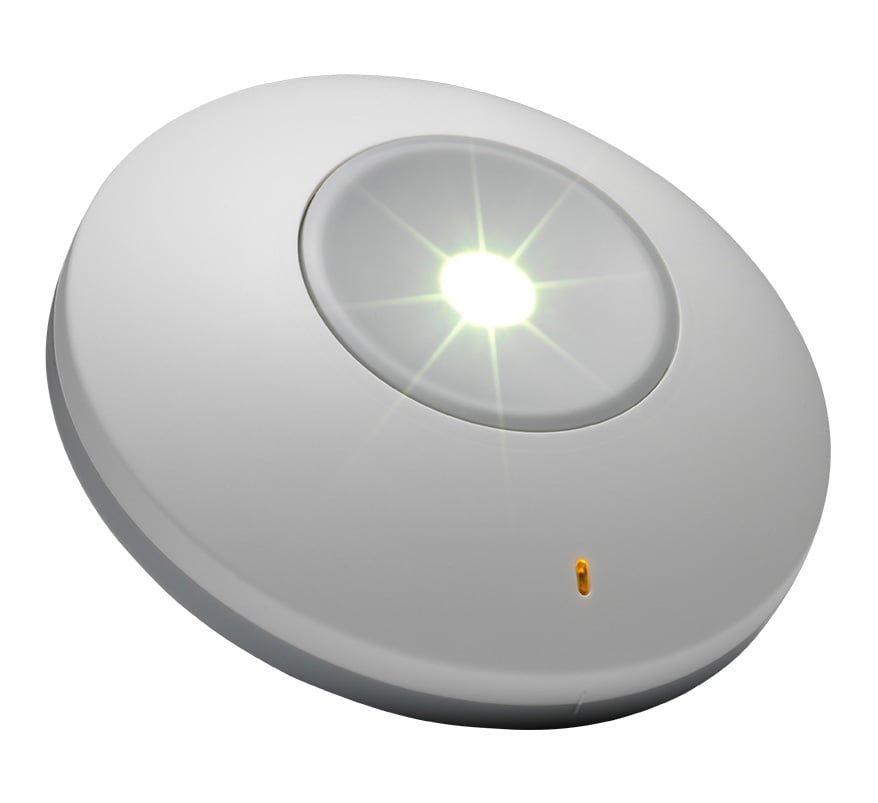

The Advanced ESL/O is an EasySafe low-voltage emergency downlighter for the LuxIntelligent system: a surface-mounted, non-maintained, addressable LED luminaire with a symmetrical wide-angle open area lens, supplied with its first-fix base and batteries.
It needs only an addressable wiring connection to the LuxIntelligent panel, as it is powered from the data loop at 32V DC with no local mains feed. It gives 3 hours of non-maintained emergency lighting from integral NiMH batteries, and a high-brightness green LED in the bezel shows battery charge and luminaire healthy status. Loss of local mains is monitored by the LuxIntelligent panel at source.
Key features
- Open area (symmetrical wide-angle) lens
- Simple first-fix base: installed base first, like a standard fire detector
- Powered from the LuxIntelligent data loop at 32V DC; no 230V connection required
- Non-maintained, 3-hour emergency duration
- Green LED indicates battery charge and luminaire healthy
- Discreet, robust surface-mounted LED luminaire with good spacing values
- Fully compatible with the LuxIntelligent test system
Technical specifications
-
Part code: ESL/O
-
Supply voltage: Low voltage (32V)
-
Operating voltage: 18-32V
-
Quantity per loop: Up to 50 EasySafe luminaires
-
Light source: 3W white LED
-
Lumens: 50lm
-
Cable termination: 14/16 AWG, 1.3/2.0mm²
-
Body: PC/ABS
-
Colour: White body (RAL 9003), grey base (Pantone 429)
-
Dimensions: 120mm diameter x 43mm high
-
Weight: 0.229kg including batteries
-
Open area spacing (0.5 lux): 8.1m between luminaires at 2.5m mounting height; 7.4m at 2.0m
What's in the box
- Downlighter with open area lens
- Base
- Batteries
