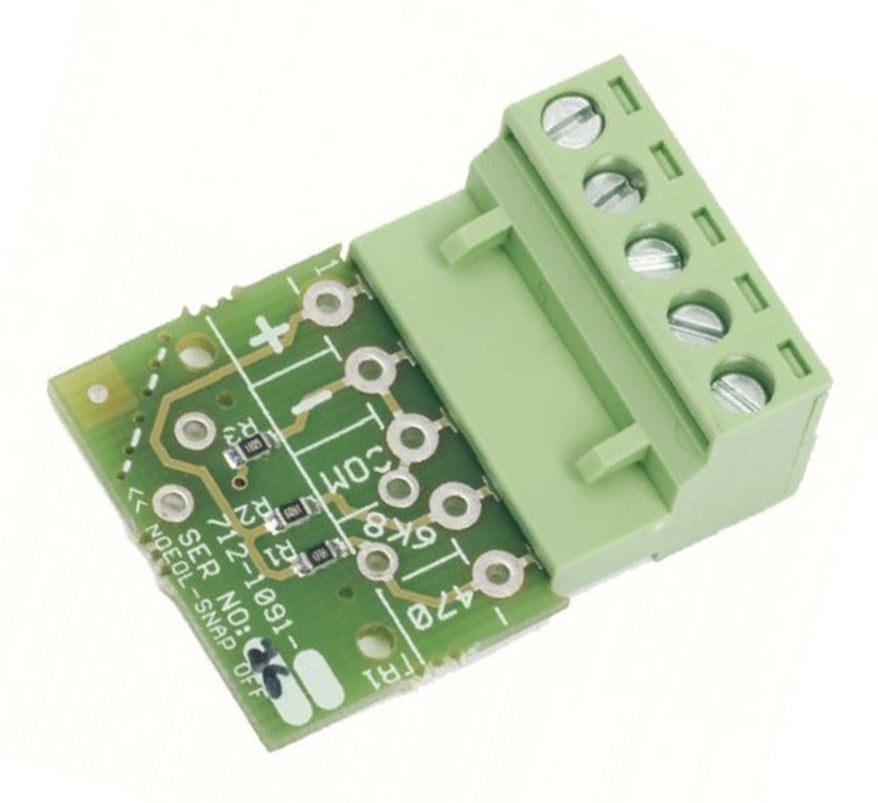

The Advanced EXP-005 is a switch end-of-line module that provides a simpler way of correctly terminating the switch input circuits of the ExGo series extinguishing control panel and system. It consists of a printed circuit card and connector, and is used in place of the standard end-of-line resistor supplied with the panel.
Where multiple switches are connected to a circuit, the modules (and their switches) can be daisy-chained. A break-off tab, which removes the end-of-line resistor, must be removed on every module except the last one on the circuit. Supplied as a pack of 5.
Key features
- Correctly terminates ExGo switch input circuits
- Printed circuit card with connector
- Daisy-chain multiple modules and switches on one circuit
- Break-off tab to remove the end-of-line resistor on intermediate modules
- Required for EXP-010 manual release and EXP-011 emergency stop buttons
- Pack of 5
Technical specifications
-
Part number: EXP-005
-
Pack quantity: 5 modules
-
Overall dimensions (H x W x D): 38mm x 27mm x 15mm
-
PCB dimensions (H x W x D): 27mm x 20mm x 2mm
-
End-of-line resistance: 6800 ohms
-
SW#1 active resistance: 470 ohms (general input: switch; valve input: closed switch)
-
SW#2 active resistance: 6800 ohms (general inputs: not used; valve input: open switch)
-
Maximum operating voltage: 30V DC
-
Environmental class: Indoor, -5°C to +40°C
-
Humidity: 95% max
-
Compatibility: ExGo series gas extinguishing panel input circuits
