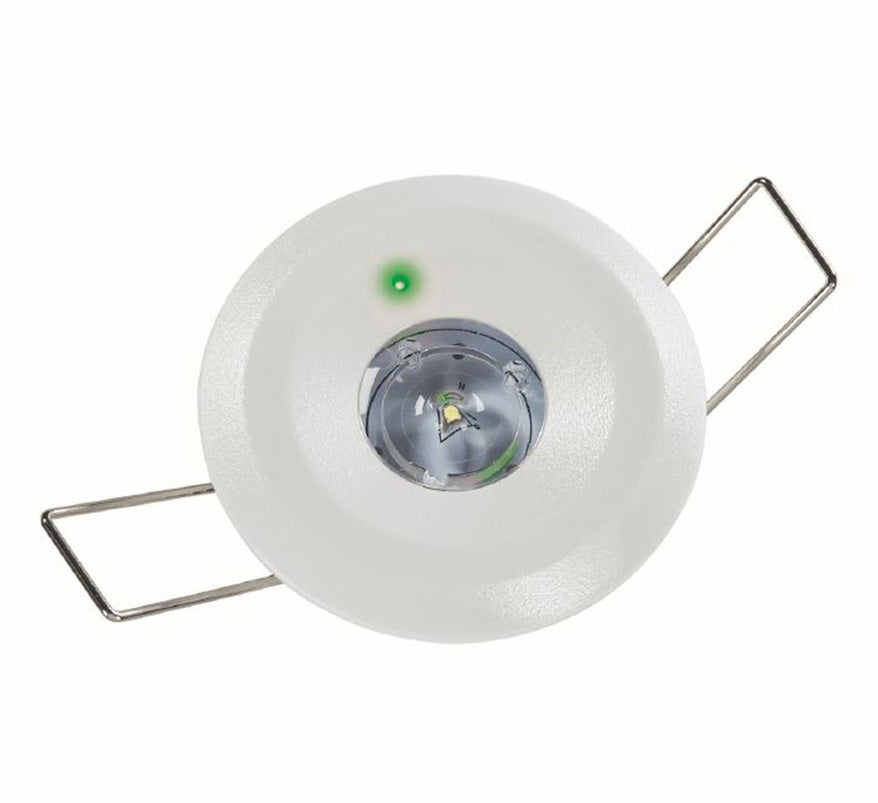

Advanced LLED3/M3/P/REM LED-Lite Downlighter, Recessed, Addressable, Maintained, Open Area Lens (White Body)

The Advanced LLED3/M3/P/REM is an LED-Lite emergency downlighter from the LuxIntelligent range, with an open area lens, addressable maintained operation, a white body and a steel remote box.

The recessed LED-Lite mounts discreetly in a 45mm cut-out, with the control gear housed in a steel remote box. Advanced offers the maintained version for applications such as night lighting in hospital wards; it comes with a robust remote enclosure housing all the control components. It needs a permanent 230V supply and addressable wiring to provide 3-hour maintained emergency lighting, and fully supports the LuxIntelligent emergency lighting test system.

Key features

• Symmetrical wide-angle open area lens
• White finish
• 3-hour maintained emergency operation
• Addressable: fully compatible with the LuxIntelligent test system
• Green LED battery charge indicator
• Discreet recessed LED luminaire, mounts in a 45mm cut-out
• Suitable for a mixture of ceiling types
• Low power consumption and excellent spacing values

Technical specifications

• Part code: LLED3/M3/P/REM
• Supply voltage: 230V (220-240V) 50Hz
• Light source: 3W white LED
• Colour temperature: 4500K
• Emergency output: 160lm
• Emergency duration: 3 hours
• Battery: 2.4V 1.8Ah NiCd
• IP rating: IP42
• Ambient temperature: 0 to 40°C
• Cut-out diameter / minimum void depth: 45mm / 175mm
• Remote box (H x W x D): 285 x 95 x 40mm, steel
• Weight: 1.0kg
• Open area lens spacing at 2m mounting height: 9.8m (0.5 lux min), 8.9m (1 lux min)
