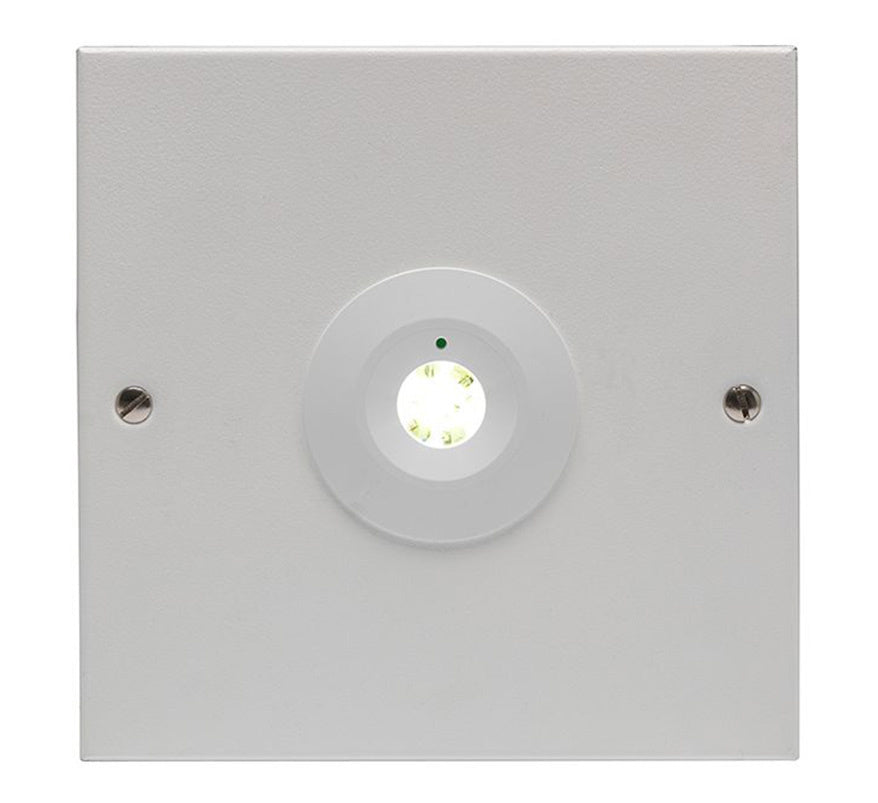

The Advanced LLED3/NM3/P/SUR/C is an LED-Lite emergency downlighter from the LuxIntelligent range, with a corridor lens, addressable non-maintained operation and a white surface-mount box.
The surface-mount LED-Lite is a robust, discreet self-contained emergency luminaire with a steel back box and steel fascia plate. It has a BESA rear entry and 20mm knockouts for surface conduit entry. It needs a permanent 230V supply and addressable wiring to provide 3-hour non-maintained emergency lighting, and fully supports the LuxIntelligent emergency lighting test system. The LED can be rotated to align the corridor distribution along the escape route.
Key features
- Asymmetric corridor lens, rotatable to align with the escape route
- White finish
- 3-hour non-maintained emergency operation
- Addressable: fully compatible with the LuxIntelligent test system
- Green LED battery charge indicator
- Robust surface-mount steel back box with steel fascia plate
- BESA rear entry and 20mm knockouts
- Low power consumption and excellent spacing values
Technical specifications
-
Part code: LLED3/NM3/P/SUR/C
-
Supply voltage: 230V (220-240V) 50Hz
-
Supply power: 1.5W
-
Light source: 3W white LED
-
Emergency output: 160lm
-
Emergency duration: 3 hours
-
Battery: 2.4V 1.8Ah NiCd
-
IP rating: IP42
-
Ambient temperature: 0 to 40°C
-
Cable entry: 2 x 20mm entries, 1 x BESA (rear)
-
Body: Steel back box with steel fascia plate
-
Dimensions (H x W x D): 195 x 195 x 40mm
-
Weight: 1.5kg
-
Corridor lens spacing (1 lux min): 11.9m at 2m, 13.1m at 3m, 14.5m at 4m mounting height
