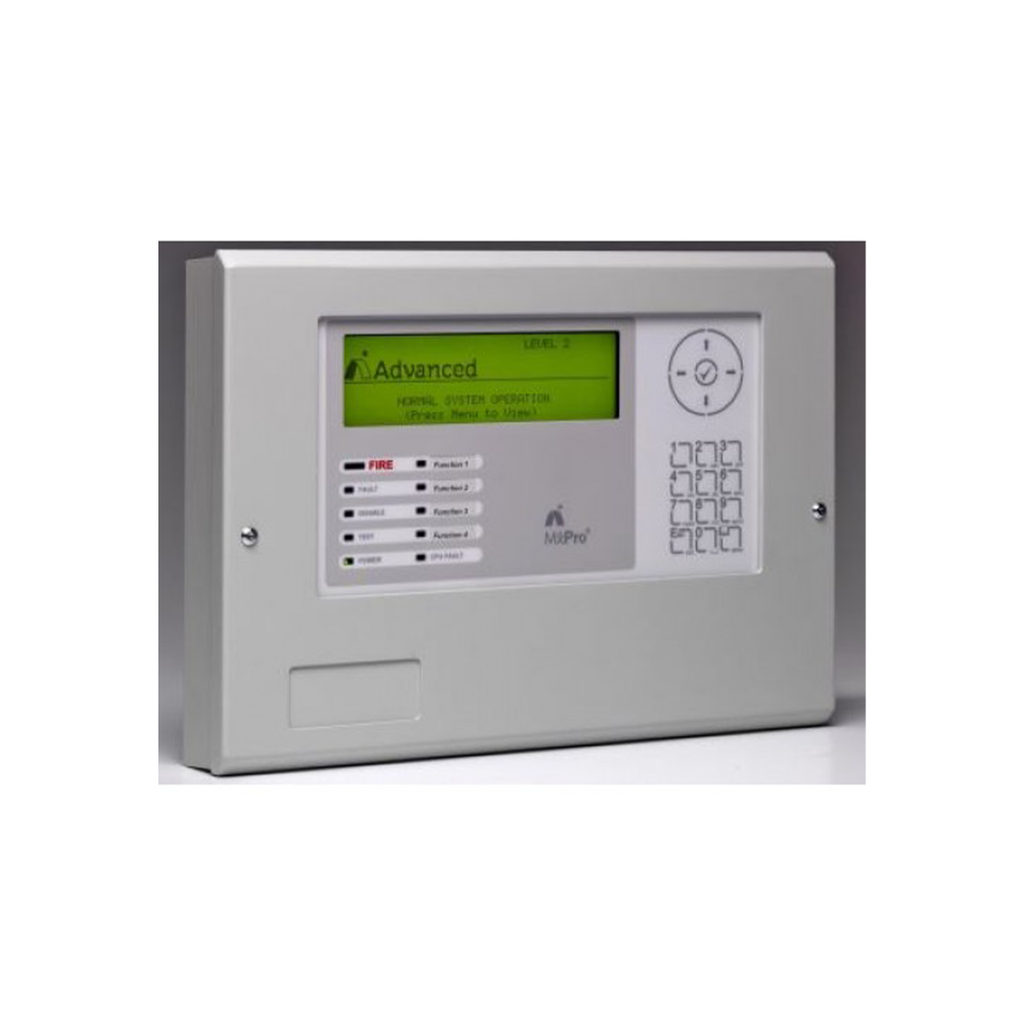

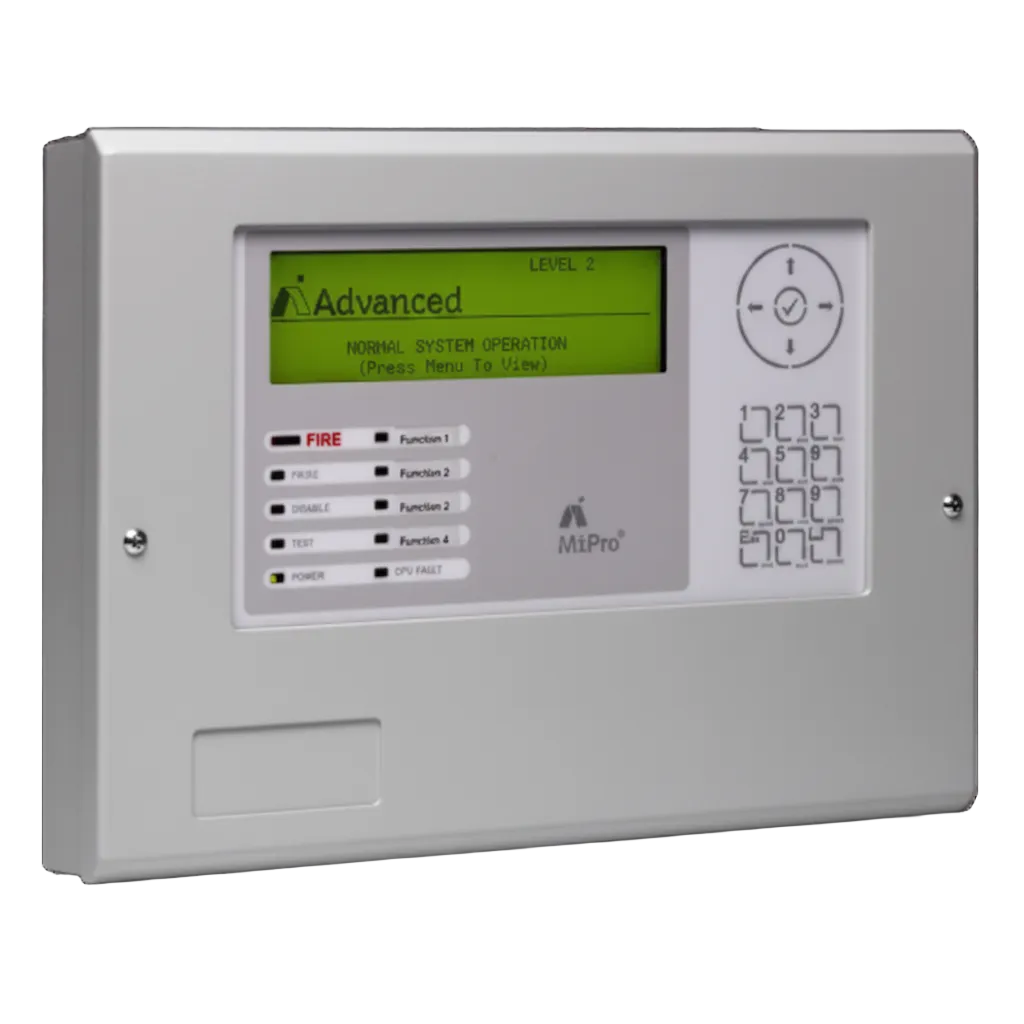

The Advanced MX-4020 is an MxPro 4 series Remote Control Terminal (RCT) with a standard network interface, running from a 24V DC supply. It uses the same graphical LCD user interface and flash-based microprocessor technology as the MxPro 4 fire panels, and communicates with them over the same 2-core Ad-NeT network cable. The MxPro 4 range is now listed by Advanced as obsolete, so this unit suits existing MxPro 4 networks.
Sector-based Evacuate, Silence, Resound and Reset keys let networked panels respond selectively to its controls. For example, on a multi-building site a user can silence and reset fires in their own building, while fires in other buildings are displayed but cannot be reset.
Key features
- Standard network interface (fault-tolerant version is MX-4020/FT)
- True peer-to-peer Ad-NeT network with full cross-panel reporting, control and cause and effect
- Display fully programmable by zone or sector for any combination of fires, faults, pre-alarms or plant alarms
- Buzzer mute, view, enable/disable and test facilities with dedicated system and navigation keys
- Integral network interface with screen termination to prevent mains-frequency earth-loop currents between network nodes
- Configurable for virtually any language or character set, with the installer's logo and company details on the LCD
- Fully programmable on site via the keypad or PC configuration tools
Technical specifications
-
Display: Backlit 240 x 64 graphical LCD
-
LED indicators: 3 red (2 x fire, 1 x alarm), 1 green (power), 12 amber (fault and system)
-
Controls: Alphanumeric keypad, navigation keys, buzzer mute; system keys for Reset, Silence, Resound and Evacuate
-
Key switch input: Optional level 2 access enable key switch
-
Power supply input: 24V DC, 150mA, operating range 15-30V
-
External supply monitoring: Monitored external fault input
-
Ports: 1 x USB, 1 x RS232 for PC, modem or external printer
-
Programming: On-board keypad or Windows PC
-
Enclosure: Steel, IP30, light grey RAL 7035
-
Cable entries: 4 x top, 4 x rear (20mm knockouts)
-
Dimensions (H x W x D): 218 x 300 x 44mm; back box only (when recessing) 218 x 300 x 30mm
