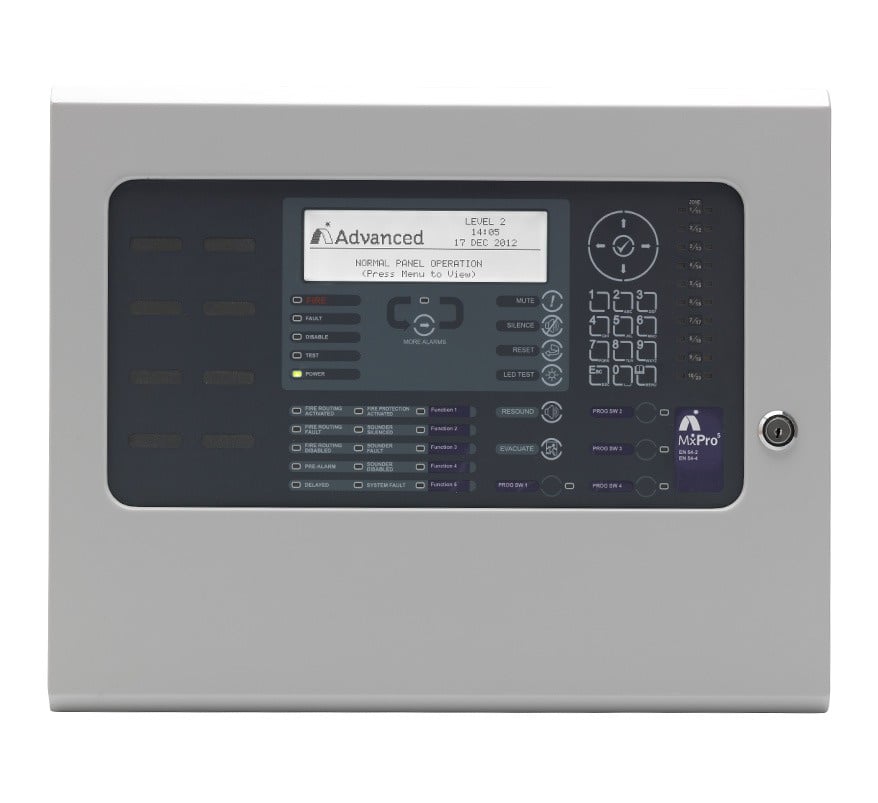

Advanced MX-5101M 1-Loop Fire Panel - Medium (Apo/Hoch)

The Advanced MX-5101M is a single-loop MxPro 5 series analogue addressable fire alarm control panel in the medium enclosure, supplied with one loop driver card for Apollo (XP95 / Discovery) and Hochiki ESP devices.

It offers the same MxPro 5 graphical interface, cause-and-effect programming and optional peer-to-peer networking as the larger panels in the range, making it suitable for smaller sites and for nodes on larger networked systems.

Key features

• Single loop driver card supplied (Apollo XP95 / Discovery and Hochiki ESP)
• 2 x on-board programmable sounder circuits
• High-resolution, white backlit 240 x 64 graphical LCD with tactile alphanumeric keypad for simple select-and-click operation
• Dual flash-based microprocessors with on-board real-time clock and trace diagnostics
• 20 programmable zonal LEDs with slide-in labels plus system LEDs
• Up to 200 fire zones per panel by default for full EN 54 compliance without additional hardware; up to 2000 zones when networked
• Powerful cause-and-effect programming for small sites through to large, complex multi-area systems
• Installer-friendly auto-learn, loop detection and on-board scope facility for commissioning and fault finding
• On-board Ethernet for AdvancedLive remote fire panel monitoring (UK and Ireland only)
• Fully programmable on site from the keypad or with Advanced PC-NeT configuration software
• Display can be configured for virtually any language or character set, and the installer's logo can be shown using the Logo application software
• Integral P-Bus for system expansion with optional peripheral cards
• Peer-to-peer networking with other MxPro 5 / MxPro 4 panels, remote terminals and network peripherals such as BMS or graphics interfaces
• 8 programmable key switch inputs and space for the optional on-board printer (medium enclosure)
• Optional plug-in network card: MXP-503 (standard) or MXP-509 (fault-tolerant)

Technical specifications

• Protocol: Apollo (XP95 / Discovery) and Hochiki ESP
• Number of loops: 1
• Devices per loop: protocol dependent
• Loop current: 500 mA
• Display: white backlit 240 x 64 graphical LCD (5.5 x 2.5 inches)
• LED indicators: 22 red (1 x Fire, 1 x More Alarms, 20 x zonal programmable), 1 green (Power), 13 amber and 12 bi-colour (Fault and System)
• Fire zones: 200 per panel; 2000 when networked
• On-board sounder circuits: 2 x 1 A programmable
• On-board relays: 2 x 1 A 30 V AC/DC programmable (10 mA, 5 V min), expandable to 4 using MXP-507
• Auxiliary supply: 1 x 24 V 500 mA
• Programmable input: 1 x monitored on-board
• Programmable key switch inputs: 8
• Total available output current: 3 A max for loop current + sounder outputs + auxiliary supply
• Mains supply: 200-240 V AC 50-60 Hz (+10%, -15%), 1.0 A max
• Charger current: 1 A, temperature compensated
• Battery capacity: 24 V 4 Ah min to 24 V 12 Ah max
• Ethernet: 10-Base-T / 100-Base-T for AdvancedLive connectivity (UK and Ireland)
• Serial port: 1 x RS232; USB: 1 x type B
• Event log: 5000 event and diagnostic + 500 fire
• Enclosure: steel, IP30, RAL 7035
• Dimensions (H x W x D): 345 x 430 x 120 mm
• Cable entry (20 mm knockouts): 17 x top, 11 x rear
• Operating temperature: -5 °C to 40 °C; humidity 95% RH max
