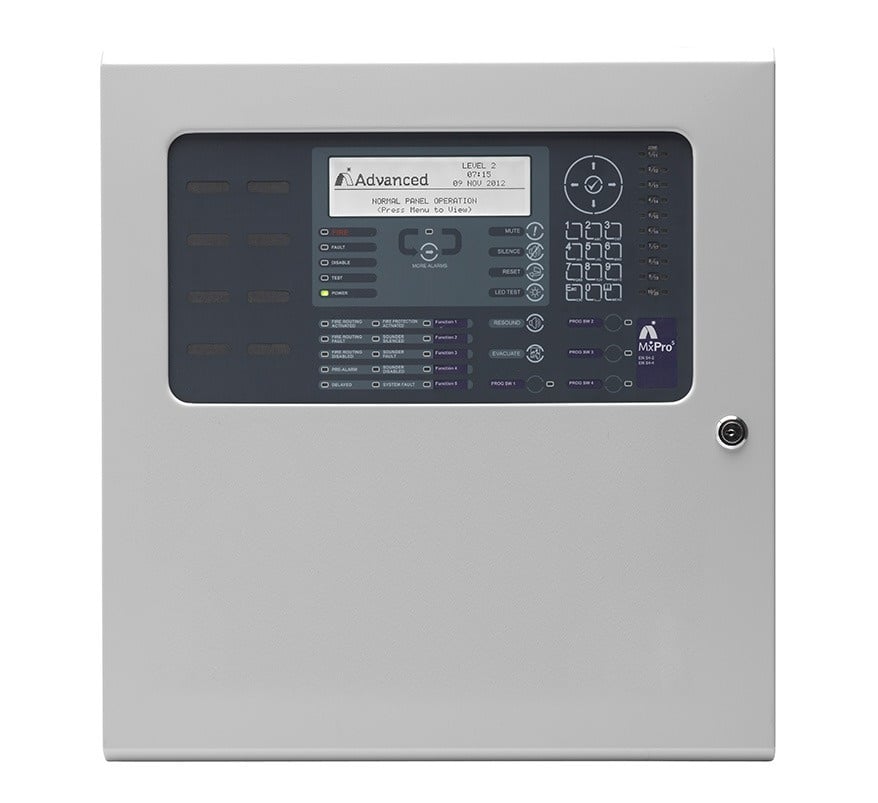

Advanced MX-5404 1-4 Loop MxPro 5 Fire Control Panel with 4 Loop Cards

The Advanced MX-5404 is an MxPro 5 series analogue addressable fire alarm control panel, expandable from 1 to 4 loops and supplied with 4 loop driver cards for Apollo (XP95 / Discovery) and Hochiki ESP devices. It is housed in a 475 x 450 x 120 mm enclosure.

Suitable for a wide range of sites from small buildings to large, complex multi-area systems, the panel provides 4 on-board sounder circuits, a high-contrast graphical display and optional peer-to-peer networking with other MxPro 5 and MxPro 4 panels.

Key features

• Supplied with 4 x MXP-568 loop driver cards (Apollo (XP95 / Discovery) and Hochiki ESP)
• All 4 loop positions populated with loop driver cards
• 4 x on-board programmable sounder circuits
• High-resolution, white backlit 240 x 64 graphical LCD with tactile alphanumeric keypad for simple select-and-click operation
• Dual flash-based microprocessors with on-board real-time clock and trace diagnostics
• 20 programmable zonal LEDs with slide-in labels plus system LEDs
• Up to 200 fire zones per panel by default for full EN 54 compliance without additional hardware; up to 2000 zones when networked
• Powerful cause-and-effect programming for small sites through to large, complex multi-area systems
• Installer-friendly auto-learn, loop detection and on-board scope facility for commissioning and fault finding
• On-board Ethernet for AdvancedLive remote fire panel monitoring (UK and Ireland only)
• Fully programmable on site from the keypad or with Advanced PC-NeT configuration software
• Display can be configured for virtually any language or character set, and the installer's logo can be shown using the Logo application software
• Integral P-Bus for system expansion with optional peripheral cards
• Peer-to-peer networking with other MxPro 5 / MxPro 4 panels, remote terminals and network peripherals such as BMS or graphics interfaces
• Optional plug-in network card: MXP-503 (standard) or MXP-509 (fault-tolerant)

Technical specifications

• Protocol: Apollo (XP95 / Discovery) and Hochiki ESP
• Loops: dedicated 1-4 loop control panel (4 loop cards supplied)
• Devices per loop: Apollo XP95 / Discovery: up to 126 detectors/call points per loop; Hochiki ESP: up to 127 per loop
• Loop current: 500 mA per loop
• Display: white backlit 240 x 64 graphical LCD (5.5 x 2.5 inches)
• LED indicators: 22 red (1 x Fire, 1 x More Alarms, 20 x zonal programmable), 1 green (Power), 13 amber and 12 bi-colour (Fault and System)
• Controls: alphanumeric keypad for navigation, Reset, Mute, Silence, Resound, Evacuate and 4 x programmable push buttons
• Fire zones: 200 per panel; 2000 when networked
• On-board sounder circuits: 4 x 1 A programmable
• On-board relays: 2 x 1 A 30 V AC/DC programmable (10 mA, 5 V min), expandable to 4 using MXP-507
• Auxiliary supply: 1 x 24 V 500 mA
• Programmable input: 1 x monitored on-board
• Programmable key switch inputs: 8 volt-free inputs
• Total available output current: 5 A max for loop current + sounder outputs + auxiliary supply
• Mains supply: 200-240 V AC 47-63 Hz (+10%, -15%), 1.4 A max
• Charger current: 2 A, temperature compensated
• Battery capacity: 24 V 4 Ah min to 24 V 18 Ah max
• Ethernet: 10-Base-T / 100-Base-T for AdvancedLive connectivity (UK and Ireland)
• Serial port: 1 x on-board RS232 for PC, modem, IP or portable printer
• USB: 1 x USB type B for PC communication
• Event log: 5000 event and diagnostic + 500 fire
• Enclosure: steel, IP30, RAL 7035
• Dimensions (H x W x D): 475 x 450 x 120 mm
• Cable entry (20 mm knockouts): 19 x top, 11 x top rear, 2 x bottom
• Operating temperature: -5 °C to 40 °C; humidity 95% RH max
• Approvals: EN 54-2:1997 +AC:1999 +A1:2006, EN 54-4:1997 +AC:1999 +A1:2002 +A2:2006, EN 50130-4:2011 +A1:2014, EN 55032:2015, EN 62368-1
