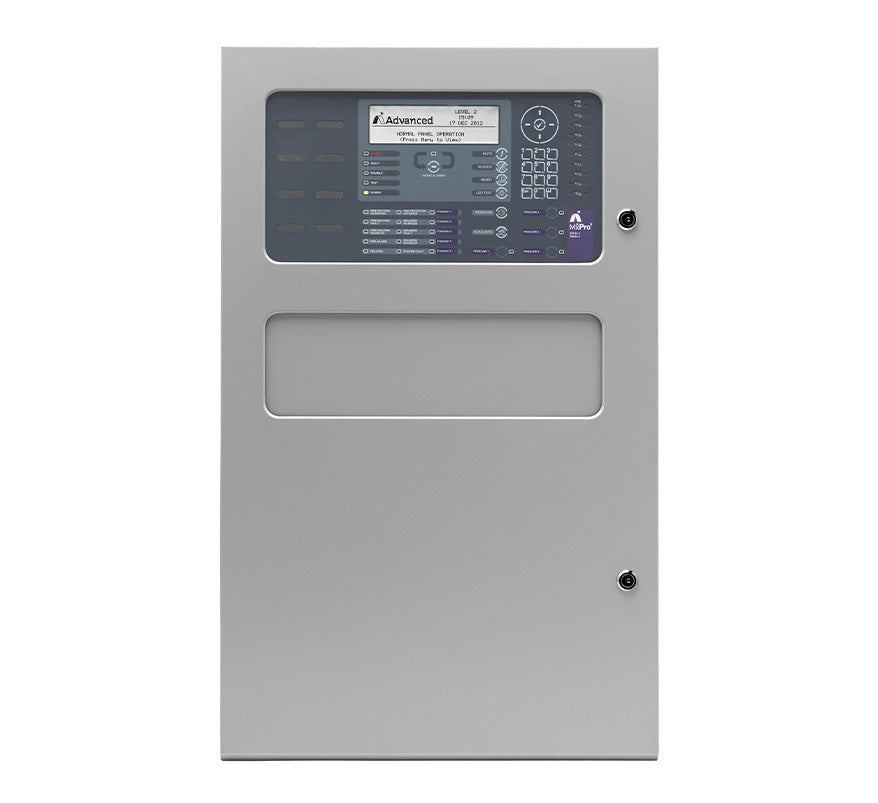

The Advanced MX-5802/FT is an MxPro 5 series analogue addressable fire alarm control panel, fully expandable from 2 to 8 loops and supplied in this configuration with 2 loop driver cards for Apollo (XP95 / Discovery) and Hochiki ESP devices. This is the fault-tolerant network version of the panel, housed in a 750 x 450 x 190 mm steel enclosure.
Suitable for a wide range of sites from small buildings to large, complex multi-area systems, the panel combines dual flash-based processors with a high-contrast graphical display, 8 on-board sounder circuits and advanced peer-to-peer networking with other MxPro 5 and MxPro 4 panels. The network can be configured in a fault-tolerant loop or radial format.
Key features
- Supplied with 2 x MXP-568 loop driver cards (Apollo (XP95 / Discovery) and Hochiki ESP)
- Expandable to 8 loops: add one MXP-568 loop driver card per additional loop
- Fault-tolerant network (/FT) panel variant
- 8 x on-board programmable sounder circuits
- Up to 400 fire zones across 8 loops, 2000 zones when networked
- High-resolution, white backlit 240 x 64 graphical LCD with tactile alphanumeric keypad for simple select-and-click operation
- Dual flash-based microprocessors with on-board real-time clock and trace diagnostics
- 20 programmable zonal LEDs with slide-in labels plus system LEDs
- Powerful cause-and-effect programming for small sites through to large, complex multi-area systems
- Installer-friendly auto-learn, loop detection and on-board scope facility for commissioning and fault finding
- On-board Ethernet for AdvancedLive remote fire panel monitoring (UK and Ireland only)
- Fully programmable on site from the keypad or with Advanced PC-NeT configuration software
- Display can be configured for virtually any language or character set, and the installer's logo can be shown using the Logo application software
- Integral P-Bus for system expansion with optional peripheral cards
- Peer-to-peer networking with other MxPro 5 / MxPro 4 panels, remote terminals and network peripherals such as BMS or graphics interfaces
- Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination
Technical specifications
- Protocol: Apollo (XP95 / Discovery) and Hochiki ESP
- Loops: dedicated 2-8 loop control panel (2 loop cards supplied)
- Devices per loop: Apollo XP95 / Discovery: up to 126 detectors/call points per loop; Hochiki ESP: up to 127 per loop
- Loop current: 500 mA max per loop
- Display: white backlit 240 x 64 graphical LCD (5.5 x 2.5 inches)
- LED indicators: 22 red (1 x Fire, 1 x More Alarms, 20 x zonal programmable), 1 green (Power), 13 amber and 7 bi-colour (Fault and System)
- Controls: alphanumeric keypad for navigation, Reset, Mute, Silence, Resound, Evacuate and programmable push buttons
- Fire zones: 400 max across 8 loops; 2000 when networked
- On-board sounder circuits: 8 x 1 A programmable
- On-board relays: 4 x 1 A 30 V AC/DC programmable (10 mA, 5 V min), expandable to 8 using 2 x MXP-507
- Auxiliary supply: 2 x 24 V 500 mA
- Programmable inputs: 2 on-board
- Programmable key switch inputs: 16 volt-free digital inputs
- Total available output current: 2 x 5 A max for loop current + sounder outputs + auxiliary supply
- Mains supply: 200-240 V AC 47-63 Hz (+10%, -15%), 1.4 A max
- Charger current: 2 x 2.0 A, temperature compensated
- Battery capacity: 24 V 4 Ah min to 24 V 45 Ah max internal (plus 1 x 24 V 45 Ah external with optional battery enclosure)
- Ethernet: 10-Base-T / 100-Base-T for AdvancedLive connectivity (UK and Ireland)
- Serial ports: 2 x on-board RS232 for PC, modem, IP or portable printer
- USB: 2 x USB type B for PC communication
- Event log: 2 x 5000 event and diagnostic + 500 fire
- Enclosure: steel, IP30, RAL 7035
- Dimensions (H x W x D): 750 x 450 x 190 mm
- Cable entry (20 mm knockouts): 30 x top, 6 x top rear, 2 x bottom rear and 3 x bottom
- Operating temperature: -5 °C to 40 °C; humidity 95% RH max
- Approvals: EN 54-2:1997 +AC:1999 +A1:2006, EN 54-4:1997 +AC:1999 +A1:2002 +A2:2006, EN 50130-4:2011 +A1:2014, EN 55032:2015, EN 62368-1
