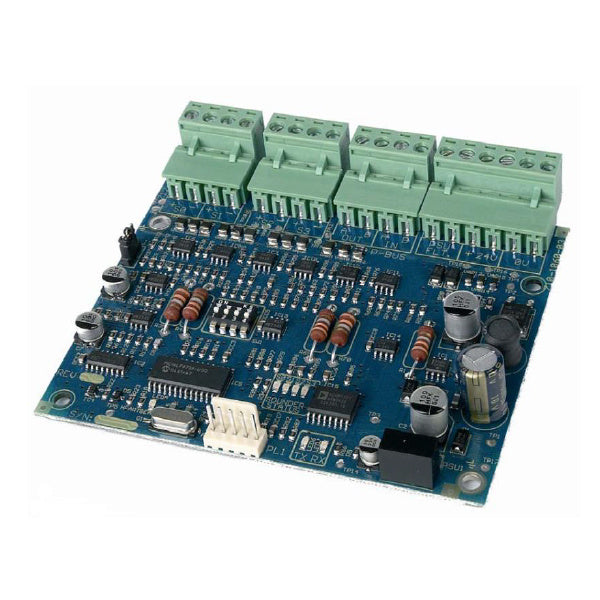

Advanced MXP-034 P-Bus 4-way Sounder card

The Advanced MXP-034 is the 4-Way Programmable Sounder Card, an optional peripheral for Advanced MxPro 5 multi-loop fire alarm control panels. It provides four individually programmable, monitored sounder output circuits compliant with BS EN 54-2:1998 Clause 7.8.

Each output is rated at 1A and monitored for open and short circuits. Outputs are programmed with the dynamic cause-and-effect rules and can be synchronised in pulsing modes. Up to 16 cards can be connected to a multi-loop panel, giving up to 64 additional local sounder outputs. The card is configured with PC-NET-003.

Key features

• 4 monitored, individually programmable sounder outputs
• EN 54-2 compliant sounder outputs
• Outputs synchronised in pulsing modes
• Up to 16 cards per panel (64 outputs)
• Easily configured via PC-NET-003
• 3-year warranty as standard

Technical specifications

• Part code: MXP-034
• Outputs: 4 x 24V DC 1A
• Applicable standards: BS EN 54-2:1998, BS EN 54-4:1998
• LED indications (PCB): Sounder circuit on, communications TX and RX, heartbeat
• PCB dimensions (H x W x D): 110 x 86 x 18mm
• PCB weight: 75g
• Operating temperature: -5°C to 40°C
• Relative humidity: 95% non-condensing max
