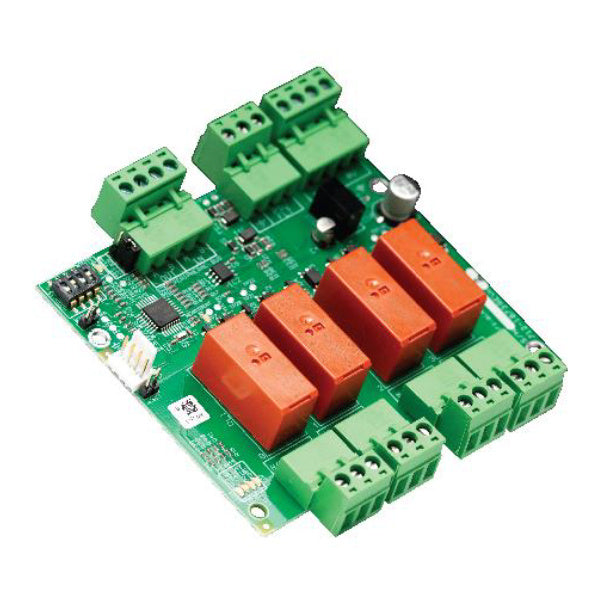

The Advanced MXP-035 is a 4-way programmable relay card for MxPro 5 fire alarm control panels. It connects to the panel's P-Bus and provides four individually programmable relay outputs for plant control and signalling, each of which can be assigned to its own output group using the panel's dynamic cause-and-effect rules.
Key features
- Four individually programmable relay outputs
- All outputs synchronised and programmable with any MxPro 5 output function
- Up to 16 cards per multi-loop panel, giving up to 64 additional relay outputs
- Input provided to monitor the fault output of a power supply
- On-board LEDs for relay status, communications and heartbeat
- Configured with the PC-NeT software
- 3 year manufacturer's warranty
- Note: fitting this card inside a panel precludes fitting other panel option cards
Technical specifications
-
Part number: MXP-035 (card only)
-
Relay rating: 230V AC 5A resistive, 230V AC ½HP, 30V DC 5A
-
Supply: 24V DC nominal (18-28V DC), 22mA quiescent, 75mA with outputs on
-
PCB dimensions (H x W x D): 100 x 86 x 16mm
-
Compatibility: All MxPro 5 control panels
-
Standards: BS EN 54-2, BS EN 54-4
