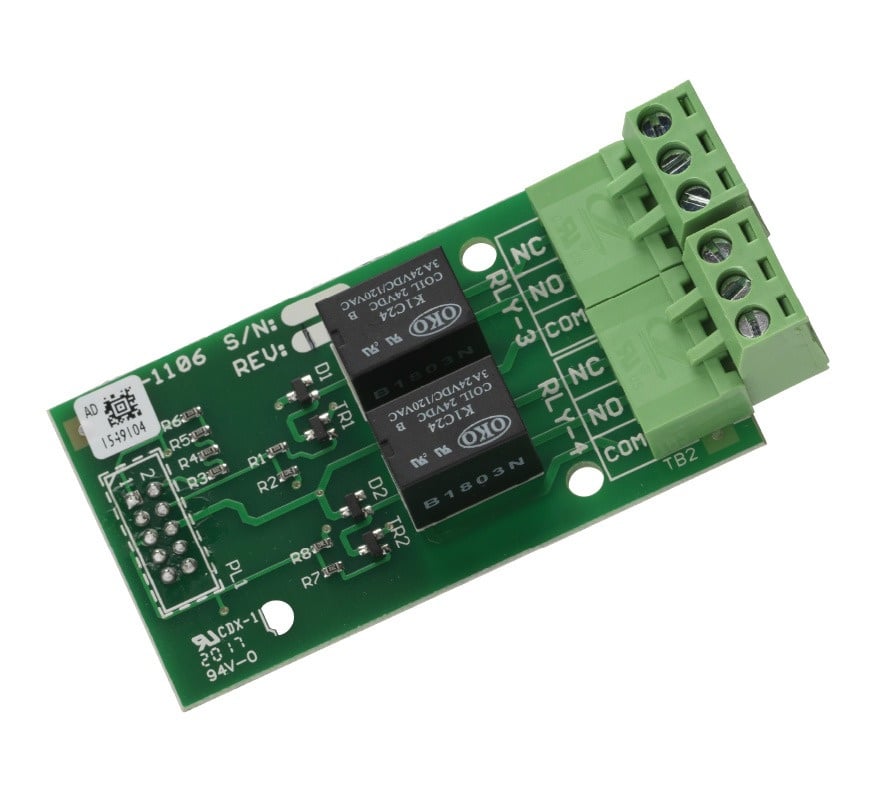

The Advanced MXP-507 is a 2-way programmable relay card for MxPro 5 series fire alarm control panels. It adds two individually programmable, volt-free, 1A-rated change-over contacts.
The card connects directly to the panel motherboard, and each output can be assigned to an output group, giving full support for dynamic zoning. It suits any application that needs extra programmable outputs at the panel, such as landlord/tenant interfaces. Only one card can be fitted per panel, giving a total of 4 programmable relays.
Key features
- 2 individually programmable change-over outputs
- Each output rated 30V AC/DC 1A
- Optional fail-safe set-up
- Allows investigation delays
- Can-silence option
- Instant response time
- Cost effective against ancillary hardware
- 3-year warranty as standard
Technical specifications
-
Outputs: 2 x programmable, 30V AC/DC 1A resistive
-
Power supply: 24V DC, taken directly from the panel
-
Supply current: 0mA (30mA in alarm state)
-
Temperature: 0°C to 49°C, indoor dry
-
Humidity: 10-95% non-condensing
-
Dimensions (H x W x D): 80 x 40 x 18mm
-
Limitations: One card per MxPro 5 panel (4 programmable relays in total)
