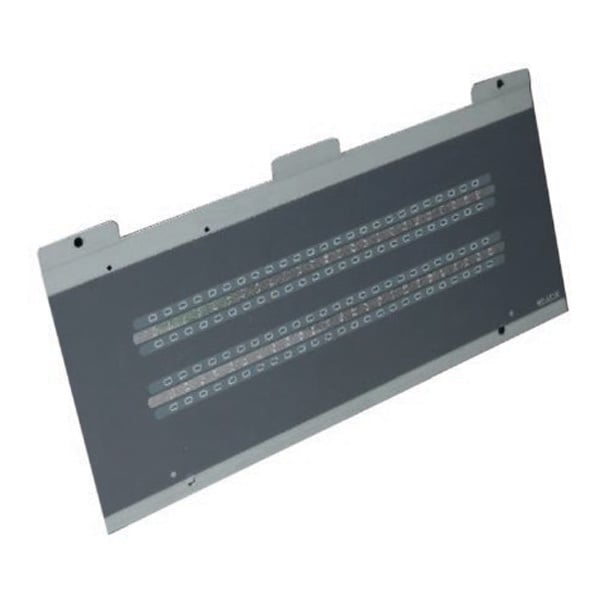

The Advanced MXP-513-100RY is a 50 zone Fire (red) + 50 zone Fault (yellow) LED card for MxPro 5 fire alarm control panels in the extended enclosure. It gives individual zonal LED indication in addition to the panel's graphical display.
By default each LED lights when its zone enters a Fire condition, but the LEDs are fully programmable and can follow the cause-and-effect strategy, for example to show Fault, Isolation or an Output Group. The card fully supports dynamic zoning on networked or larger stand-alone systems, so individual zone indication can be provided at one location.
Key features
- 50 zone Fire (red) + 50 zone Fault (yellow) LEDs
- Programmable LEDs
- Supports dynamic zoning
- Factory fitted or retrofit options
- 3-year warranty as standard
Technical specifications
-
Part code: MXP-513-100RY
-
LED configuration: 50 zone Fire (red) + 50 zone Fault (yellow)
-
Enclosure: Extended enclosure
-
Supply: For fitting to the panel
-
Compatible panels: MX-5401E to MX-5404E and MX-5802 to MX-5808 (including /FT versions)
