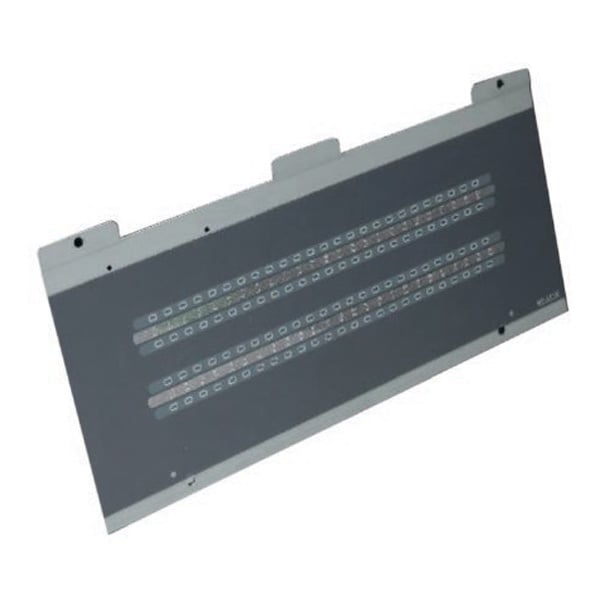

Advanced MXP-513-200RY 200 Zone FIRE/FAULT (100 RED + 100 YEL)

The Advanced MXP-513-200RY is a zone LED indicator card for MxPro 5 fire alarm control panels in the extended enclosure. It provides 200 zones of Fire/Fault indication using bi-colour LEDs, adding individual zonal LED indication alongside the panel's graphical display.

By default each LED lights when its zone enters a Fire condition, but every LED is fully programmable and can follow the panel's cause-and-effect strategy, for example to show Fault, Isolation or Output Group states. The card fully supports dynamic zoning on networked or larger stand-alone systems.

Key features

• Individual zonal LED indication in addition to the panel display
• Fully programmable LEDs using cause-and-effect rules
• Bi-colour LEDs with slide-in labels to help identify the origin of a condition
• Supports dynamic zoning
• Factory fitted or retrofit options
• Cost effective compared with ancillary hardware
• 3-year warranty as standard

Technical specifications

• Part code: MXP-513-200RY
• Indication: 200 zones of Fire/Fault indication using bi-colour LEDs
• Enclosure format: MxPro 5 extended enclosure
• Compatible panels: MX-5401E to MX-5404E and the MX-5802 to MX-5808 2-8 loop panels (including /FT versions)
