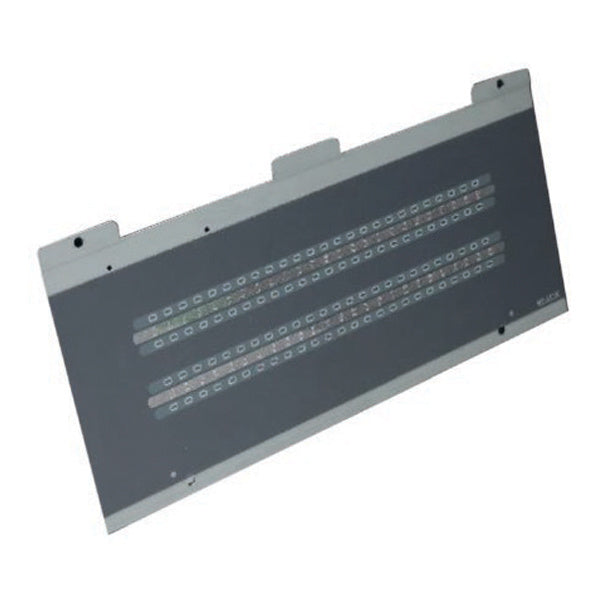

The Advanced MXP-513M-050YL is a 50-zone LED indicator card for MxPro 5 fire alarm control panels in the medium enclosure, with 50 yellow LEDs, indicating Fault. It is supplied complete with a door.
Zone LED cards give an individual LED indication for each zone in addition to the panel's graphical display, and fully support dynamic zoning on networked or larger stand-alone systems. Each LED is fully programmable, so it can follow the cause-and-effect strategy and light on Fault, Isolation, Output Group and other conditions as well as Fire.
Key features
- 50 individual zone LEDs
- Programmable LEDs following the panel's cause and effect
- Supports dynamic zoning
- Factory fitted or retrofit
- Cost effective against ancillary hardware
- 3-year warranty as standard
Technical specifications
-
Zones: 50
-
LED arrangement: 50 x yellow (Fault)
-
Enclosure: Medium enclosure, supplied with door
-
Compatible panels: MX-5101M, MX-5201 and MX-5202
-
Panel series: MxPro 5
