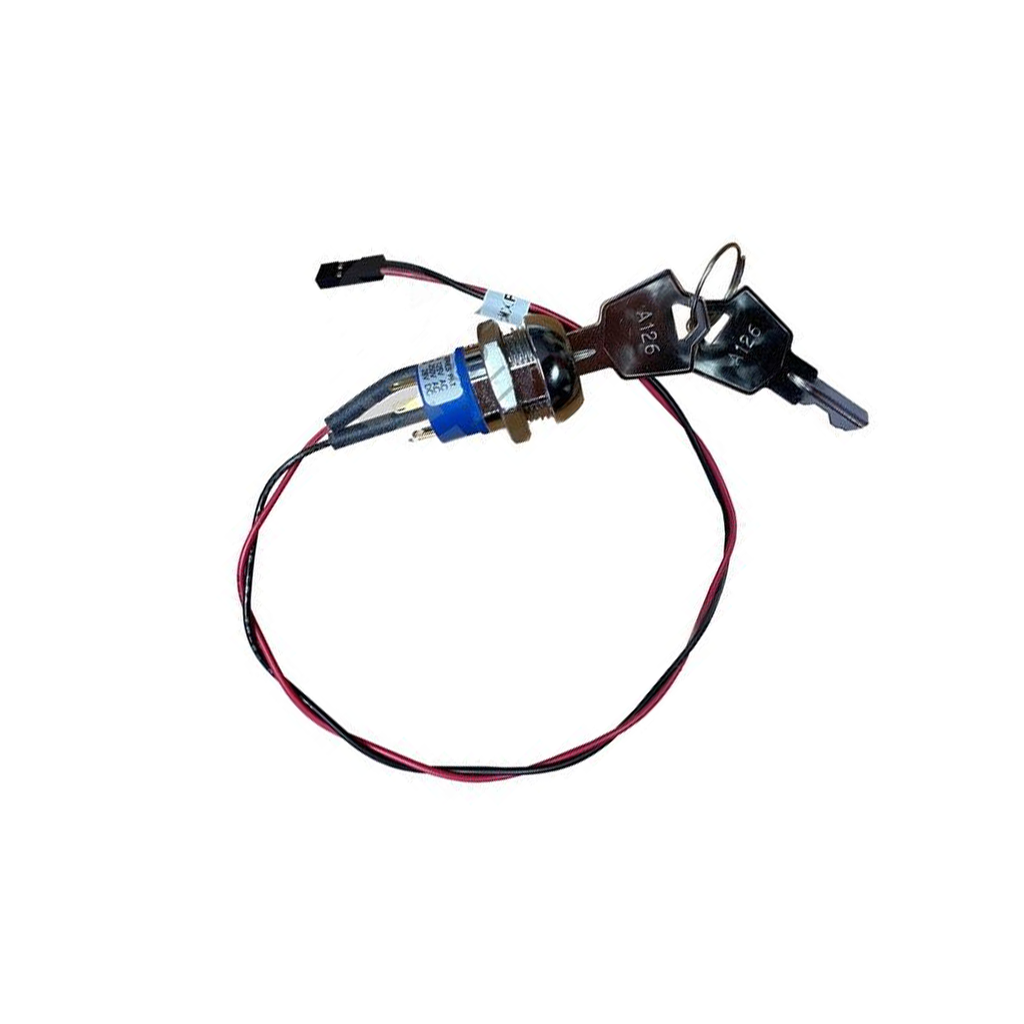

The Advanced MXP-516F is a 2-position trapped key switch assembly for MxPro 5 (MX-5000) fire alarm control panels, supplied fitted to the panel. MxPro 5 panels support direct installation of individual key switches to give dedicated, key-operated control of programmed functions.
The MxPro 5 1-loop panel allows 1 key switch to be fitted, while the 2 and 4-loop panels allow up to 8 (limited to 4 if an on-board printer is fitted).
Key features
- 2-position key switch, trapped
- Supplied fitted to the panel
- Can be used to enable/disable controls
- Group isolate to disable I/O across the network
- Start or enable a class change
- Control multi-sensor/device sensitivity mode changes
- Simple to install and configure
Technical specifications
-
Part code: MXP-516F (fitted version of MXP-516)
-
Type: 2-position key switch assembly, trapped
-
Maximum per panel: 1 on the 1-loop panel; 8 on 2 and 4-loop panels (4 with an on-board printer)
-
Spare key switch: MXS-516 (Lorlin style)
-
Compatibility: All MxPro 5 series control panels
