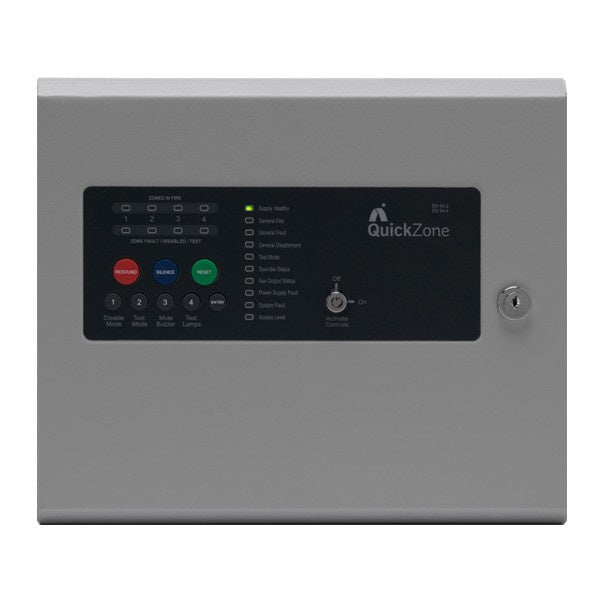

The Advanced QZ-4 QuickZone is a 4-zone conventional / Twin Wire (Sav-Wire) fire alarm control panel with integral power supply and space for standby batteries, approved to EN 54-2 and EN 54-4. It is easy to install and maintain and simple for the end user to operate.
Four fire zone circuits are provided plus two monitored sounder circuits, fire and fault volt-free changeover relays, fire and fault switched negative outputs, and class change and alert inputs. It supports an extensive range of conventional fire detectors, including Apollo, Argus, Hochiki and Nittan; Twin Wire mode requires special 'Sav-Wire' detector bases and polarised 470 ohm call points.
Key features
- 4 fire zones, conventional or Twin Wire (selectable by DIL switch)
- 2 monitored sounder circuits
- Fire and fault relays
- Class change and alert inputs
- Simple colour-coded buttons for controls and programming
- Test mode
- Key switch or code entry for activation of controls
- Integral 1A switch mode PSU with space for up to 2 x 3.2Ah batteries
Technical specifications
-
Number of fire zones: 4
-
LED indicators: 5 red (1 x Fire, 4 x zonal), 1 green (Power), 13 amber (4 x zonal, 9 x Fault and System)
-
Controls: 3 colour-coded buttons (Resound, Silence and Reset), 1-4 numerical buttons and Enter
-
Key switch input: Level 2 access enable key switch or code entry
-
Zonal circuit configuration: Conventional or Twin Wire (selectable by DIL switches)
-
On-board sounder circuits: 2 monitored (fused 500mA)
-
On-board relays: 2 auxiliary clean changeover relays (1 Fire, 1 Fault), 3A max at 30V DC
-
Mains supply: 230V 50Hz (+10% / -15%), 1.0A max
-
Auxiliary supply: 28V DC 400mA continuous
-
Battery capacity: 2 x 3.2Ah 12V SLA, internal
-
Charger current: 630mA (27.0V DC at 20°C, temperature compensated)
-
Enclosure: Lockable steel, IP30, RAL 7035
-
Cable entries: 13 x top, 7 x rear (20mm knockouts)
-
Dimensions (H x W x D): Back box 250 x 300 x 80mm; door 260 x 308 x 23mm
-
Approvals: EN 54-2:1997 + A1:2006; EN 54-4:1997 + A1:2002 + A2:2006
