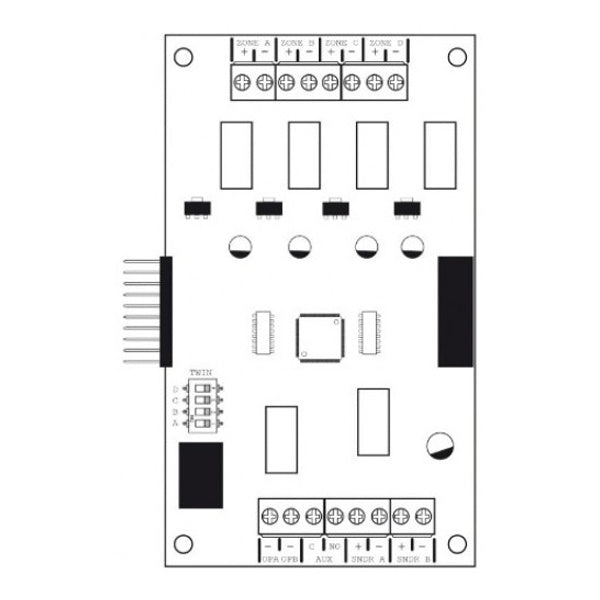

The Advanced QZXL-HSZEC is the high specification 4-zone expander card for the QuickZone XL conventional / Twin Wire fire alarm control panel. It adds four fire zone circuits to the panel, which can be expanded up to 12 zones using modular expansion zone cards.
The high specification card also provides two additional monitored sounder outputs, programmable switched negative outputs and one programmable relay. It supports an extensive range of conventional fire detectors, including Apollo, Argus, Hochiki and Nittan; Twin Wire mode requires special 'Sav-Wire' detector bases and polarised 470 ohm call points.
Key features
- Adds 4 fire zones to a QuickZone XL panel
- 2 additional monitored sounder circuits
- Programmable switched negative outputs
- One programmable relay
- Zones selectable as conventional or Twin Wire by DIL switch
- Fitted as standard on the QZXL-8HS; one fitted on the QZXL-12HS
Technical specifications
-
Part code: QZXL-HSZEC
-
Type: QuickZone XL 4-zone expander card, high specification
-
Additional zones: 4
-
Additional sounder circuits: 2 monitored
-
Panel capacity: 4 to 12 zones depending on product and expansion
-
Compatibility: QuickZone XL panels (QZXL-4, QZXL-8HS, QZXL-12HS)
-
Panel approvals: EN 54-2:1997 + A1:2006; EN 54-4:1997 + A1:2002 + A2:2006
