Advanced QZXL-R12 QuickZone XL - Repeater 12 Zone

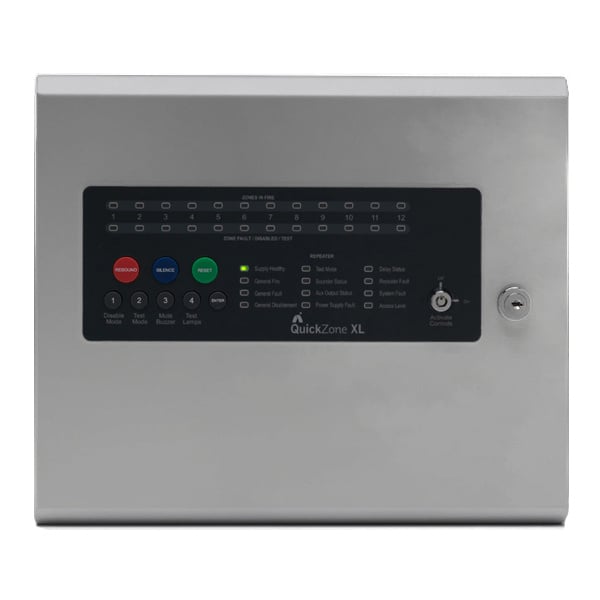

The Advanced QZXL-R12 is a QuickZone XL 12 zone repeater panel. It has the same easy-to-use control and indication as the main QuickZone XL control panel, in a smaller cabinet.

Repeaters are fully functional, with Silence, Resound and Reset controls plus Disable and Test Mode, or can be made passive (indication only). They are designed to be wired in a fault-tolerant loop back to the main panel so they keep working if a cable breaks; a radial circuit with communications monitoring can be used where existing cabling cannot be looped. A QuickZone XL panel supports up to 8 repeaters.

Key features

• 12 zonal, fire and fault indications
• Simple colour-coded control buttons
• Fully functional or passive operation
• 2 switched negative inputs to sound or pulse alarms (reprogrammable as PSU fault inputs)
• 6 programmable switched negative outputs on the internal communications PCB
• Class change and alert inputs
• Test mode and disablement functions
• Key switch or code entry for access level 2
• Integral 1A switch mode PSU with space for 2 x 3.2Ah batteries
• One-year warranty as standard

Technical specifications

• Zones indicated: 12
• LED indicators: 13 red (1 x fire, 12 x zonal), 1 green (power), 22 amber (12 x zonal, 10 fault and system)
• Controls: Colour-coded Resound, Silence and Reset buttons, 1-4 numerical buttons and Enter
• Mains supply: 230V 50Hz (+10% / -15%), 1.2A max
• Auxiliary supply: 28V DC 400mA continuous
• Battery capacity: 2 x 3.2Ah 12V SLA, internal (batteries not included)
• Charger current: 630mA (27.0V DC at 20°C, temperature compensated)
• Enclosure: Lockable steel, IP30, RAL 7035
• Cable entries: 13 x top, 6 x rear (20mm knockouts)
• Dimensions (H x W x D): Back box 250 x 300 x 80mm; door 260 x 308 x 23mm
• Approvals: EN 54-2:1997 + A1:2006, EN 54-4:1997 + A1:2002 + A2:2006
