Advanced RLED/M3/P Mor-LED IP65 Bulkhead, Surface Mount, Maintained, Addressable
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
- Fully compatible with the LuxIntelligent automatic test system
- IP65-rated bulkhead
- Long-life LEDs (50,000 hours)
- Low power consumption (less than 10W)
- Suitable for cold stores (down to -20°C)
- 3-hour emergency duration
Frequently bought together
Product details

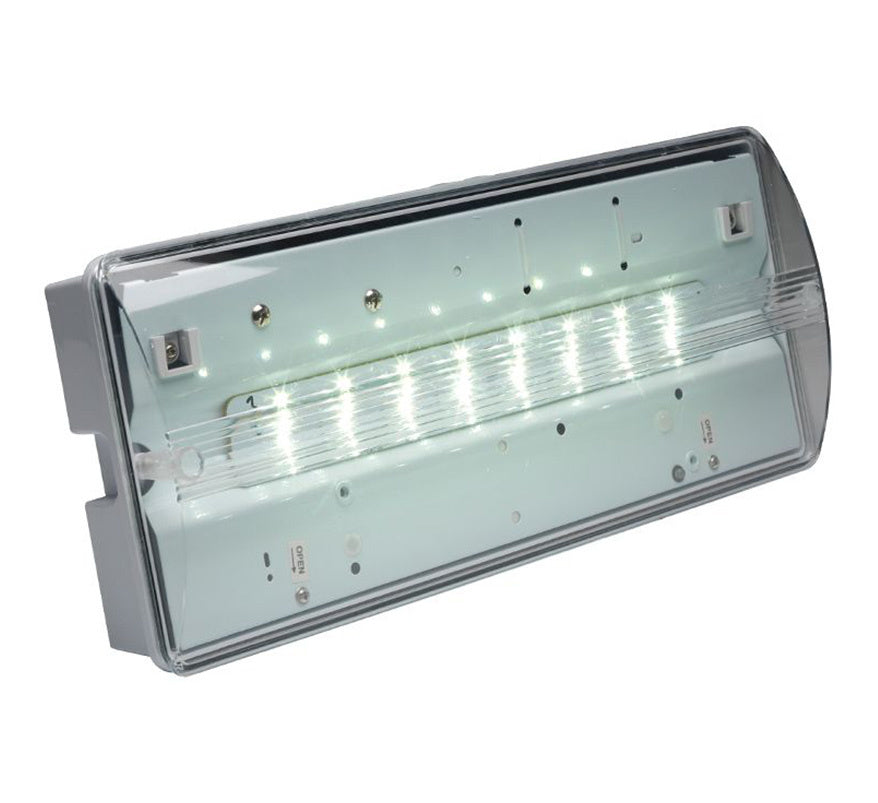

The Advanced RLED/M3/P is a Mor-LED IP65 emergency bulkhead: a surface-mounted, maintained, addressable luminaire for the LuxIntelligent automatic emergency lighting test system. It combines a robust IP65 polycarbonate base with a clear Fresnel lens housing 16 high-output white LEDs, giving 150 lumens with a wide distribution for good illumination along escape routes.
It has integral maintained emergency control gear and a nickel-cadmium battery giving 3 hours' emergency duration. It can be used for standard switched mains lighting and switches to emergency operation automatically on loss of the local mains supply; non-maintained operation is achieved by leaving out the switched live supply. The Mor-LED fully supports the LuxIntelligent test system and complies with EN 60598-2-22.
Key features
- Fully compatible with the LuxIntelligent automatic test system
- IP65-rated bulkhead
- Long-life LEDs (50,000 hours)
- Low power consumption (less than 10W)
- Suitable for cold stores (down to -20°C)
- 3-hour emergency duration
- Lens accepts 100mm-high self-adhesive signs; optional deep double-sided diffuser (RLED/DDS) and semi-recessing bezel (RLED/SL/B)
- 20mm drilling points at either end and one on the rear
- Complies with EN 60598-2-22
Technical specifications
- Operation: Maintained (non-maintained by excluding switched live), addressable
- Supply voltage: 230V (220-240V) 50Hz
- Supply power: 3.0W
- Charge power (typical): 1.2W
- Light source: 16 white LEDs
- Colour temperature: 4600K
- Luminaire output (mains and emergency): 150lm
- Battery: 1 x 3.6V 1.5Ah NiCd
- Emergency duration: 3 hours
- IP rating: IP65 (at 25°C)
- Construction: White polycarbonate base, optical-grade UV-stabilised lens, hinged white plastic geartray
- Cable entry: 20mm drilling points
- Dimensions (H x W x D): 350 x 120 x 65mm
- Weight: 1.1kg
