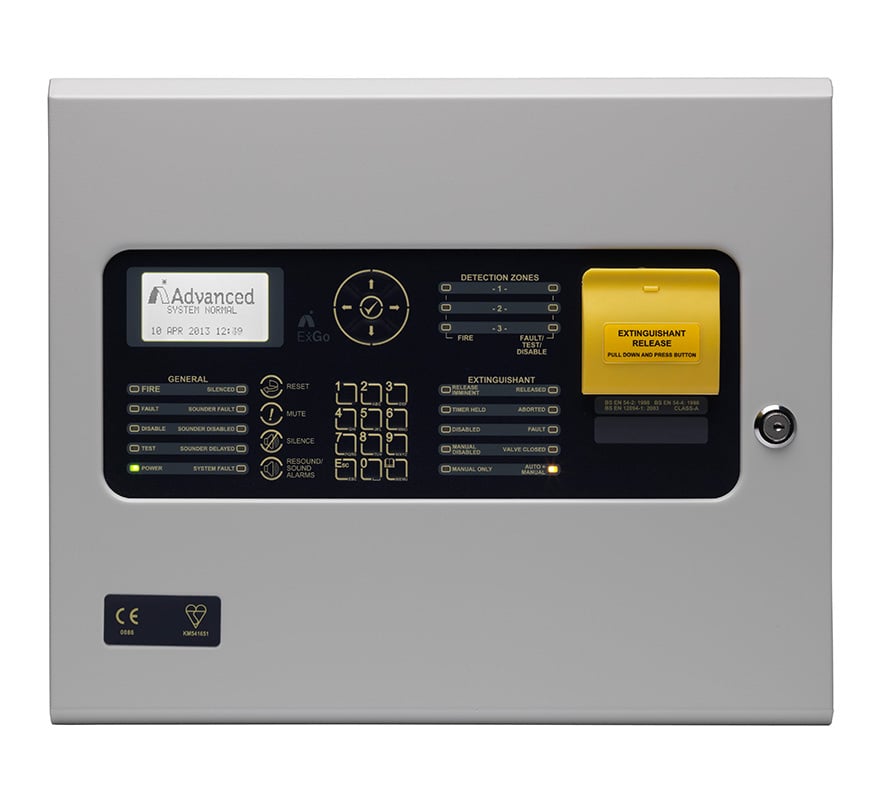

The Advanced EX-3001 ExGo is a three-zone automatic gas extinguishing control panel with one release (extinguishing) output. It detects a fire in the same way as a fire alarm panel but also controls the release of the extinguishing agent, from CO2 to specialist gases such as aerosol and clean agents.
It is approved to EN 12094-1 and EN 54 parts 2, 4 and 13, and is typically used to protect high-value or strategically important areas such as computer suites, telecoms switch rooms and battery energy storage systems (BESS).
Key features
- 3 conventional detection zones, including support for I.S. barriers
- 1 flooding / extinguishing zone supporting solenoid and Metron type actuators
- LCD display for clear status indication and programming, with large digital countdown timer
- Passcode or optional key switch for Level 2 access
- Time- and date-stamped event log with improved diagnostics
- RS485 connection for up to 7 remote status indicators
- PC download of configuration and event logs via USB
- Company logo can be displayed on the LCD in normal conditions
- Multiple languages, with customisable slide-in labels
Technical specifications
- Base technology: flash-based processor
- Display: backlit 128 x 64 LCD
- Detection zones: 3 x conventional
- Extinguishing zones: 1 x; solenoid (1 A continuous load) and Metron (3 A, 15 ms pulse) actuators
- On-board sounder circuits: 3 x 1 A, 18-28 V DC
- On-board relays: 4 x 1 A 30 V DC (Fire, Fault and 2 x programmable)
- Auxiliary supply: 2 x 500 mA, 18-28 V DC (1 switched)
- Programmable outputs: 8 additional via EXP-008
- Switch inputs: 4 x programmable, 1 x manual trigger, 6 x release (Mode Select, Valve Monitor, Pressure Monitor, Hold, Abort, Flow)
- Remote status indicators: up to 7 via RS485
- Mains supply: 3 A universal switch-mode PSU
- Battery capacity: 24 V 7 Ah; charger current 1 A
- USB: 1 x for PC connection
- Event log: 100 fire/trigger events, 500 general events
- Enclosure: steel, IP30, grey RAL 7035
- Cable entry: 17 knockouts in top, 13 in back
- Dimensions (H x W x D): 330 x 400 x 90 mm; weight 6 kg
- Approvals: EN 12094-1, EN 54-2, EN 54-4, EN 54-13
