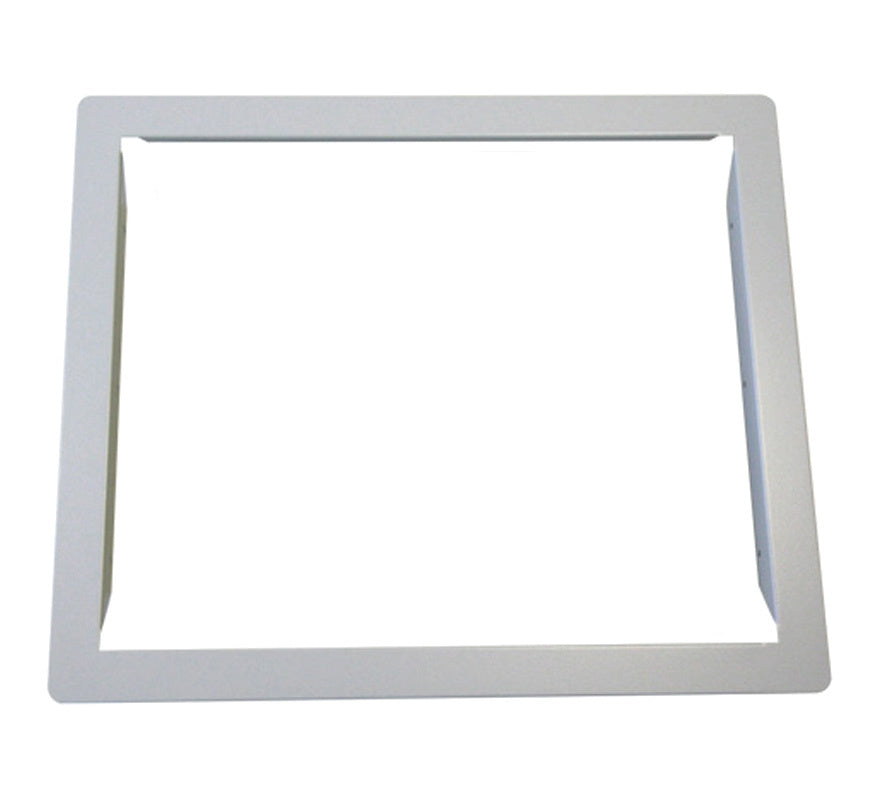

The Advanced EXM-002 is a semi-flushing bezel for the ExGo Remote Status Indicator (RSI), allowing the RSI to be semi-flush mounted rather than surface mounted.
ExGo Remote Status Indicators repeat the status of an ExGo extinguishing panel at a remote location. They connect to the panel over RS485, with up to 7 RSIs per ExGo panel, and are available as display-only units or with a manual release button and optional mode select key switch.
Key features
- Semi-flush mounting option for ExGo RSIs
- Suits all four RSI variants (EX-3020, EX-3021, EX-3030, EX-3031)
Technical specifications
-
Part code: EXM-002
-
Description: Semi-flushing bezel for RSI
-
For use with: ExGo EX-3020, EX-3021, EX-3030 and EX-3031 Remote Status Indicators
-
RSI dimensions (H x W x D): 190 x 235 x 45mm
-
RSI enclosure: Steel, IP30
-
RSI communications: RS485 to the Ex-3000 series control panel
