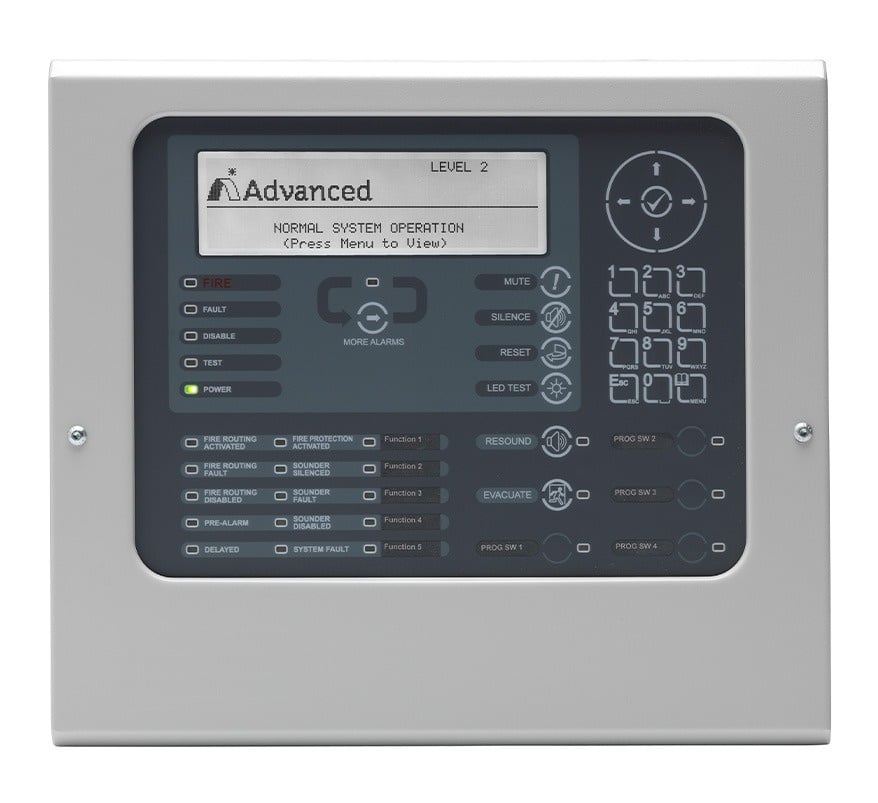

Advanced MX-5030 Remote Control Terminal (RCT) - Large

The Advanced MX-5030 is the large Remote Control Terminal (RCT) for MxPro 5 networked fire alarm systems. It gives full display and control of the networked system from a remote location, and adds programmable push buttons and LEDs that can be used for remote isolation, class change or general alarm functions.

Key features

• Same graphical LCD user interface as the MxPro 5 fire panels
• Connects to MxPro 5 panels over the same 2-core Ad-NeT / Ad-NeT+ network cable, with an integral network interface
• View information from across the network, with display filtering by zone or sector
• Sector-based Silence, Mute, Resound and Reset controls: for example, users can reset fires in their own building while fires elsewhere are displayed but cannot be reset
• Buzzer mute, view, enable/disable and test facilities
• Programmable switch input and monitored external supply fault input
• Optional level 2 access enable key switch
• Programmable from the on-board keypad or with PC tools; installer logo can be shown on the display
• 3 year manufacturer's warranty
• Programmable push buttons and LEDs for remote isolation, class change or general alarms

Technical specifications

• Display: White backlit 240 x 64 graphical LCD
• LED indicators: 2 red, 1 green and 18 amber
• Controls: Mute, Reset, Silence, Resound and Evacuate
• Power supply input: 24V DC, 115mA (operating range 15-30V)
• Zones: Up to 2,000
• Ports: 1 x USB, 1 x RS232
• Enclosure: Steel, IP30, RAL 7035
• Dimensions (H x W x D): 263 x 300 x 42mm (back box when recessing: 263 x 300 x 30mm)
• Cable entry: 20mm knockouts, 4 x top and 4 x rear
• Approvals: EN 54-2, EN 54-4
