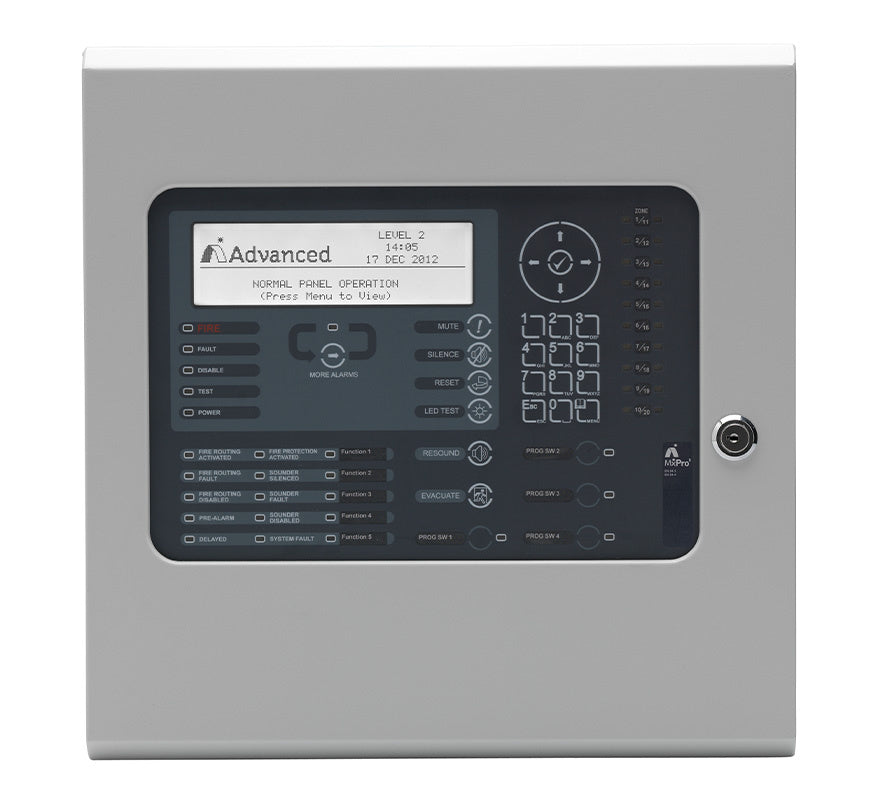

Advanced MX-5101 1-Loop Fire Panel - Small (Apollo/Hochiki)

The Advanced MX-5101 is a single-loop MxPro 5 series addressable fire alarm control panel in the compact standard enclosure, for use with Apollo (XP95 / Discovery) and Hochiki ESP protocol devices. It brings the same interface, programming and networking capability as the larger MxPro 5 panels to smaller sites.

Key features

• Apollo (XP95 / Discovery) and Hochiki ESP protocol support
• White backlit 240 x 64 graphical LCD with tactile alphanumeric keypad
• 20 programmable zonal LEDs with slide-in labels, plus 25 system LEDs
• 4 programmable function buttons with LED confirmation
• Up to 200 fire zones per panel as standard, and up to 2,000 zones when networked
• Powerful cause-and-effect programming with dynamic zoning and enhanced trace diagnostics
• Installer-friendly auto-learn, loop detection and on-board scope facilities for commissioning and fault finding
• On-board Ethernet for AdvancedLive remote monitoring (UK and Ireland)
• USB and RS232 ports for PC or modem connection; programmable from the keypad or with PC-NeT configuration software
• Robust removable equipment chassis with plug-in connectors
• Integral P-Bus for expansion with option cards; add a network card for a peer-to-peer Ad-NeT network
• 3 year manufacturer's warranty

Technical specifications

• Loops: 1
• Loop current: 500mA
• Zones: 200 per panel, 2,000 networked
• Sounder circuits: 2 x 1A programmable
• Relays: 2 x 1A 30V AC/DC programmable (expandable to 4 with MXP-507)
• Auxiliary supply: 1 x 24V 500mA
• Total output current: 3A maximum (loop, sounders and auxiliary combined)
• Mains supply: 200-240V AC 50-60Hz, 1.0A max
• Charger: 1A, temperature compensated
• Event log: 5,000 events and diagnostics plus 500 fire events
• Enclosure: Steel, IP30, RAL 7035
• Dimensions (H x W x D): 345 x 345 x 85mm
• Battery capacity: 24V 4Ah minimum, 24V 7Ah maximum (batteries not included)
• Operating temperature: -5°C to 40°C
• Approvals: EN 54-2, EN 54-4
