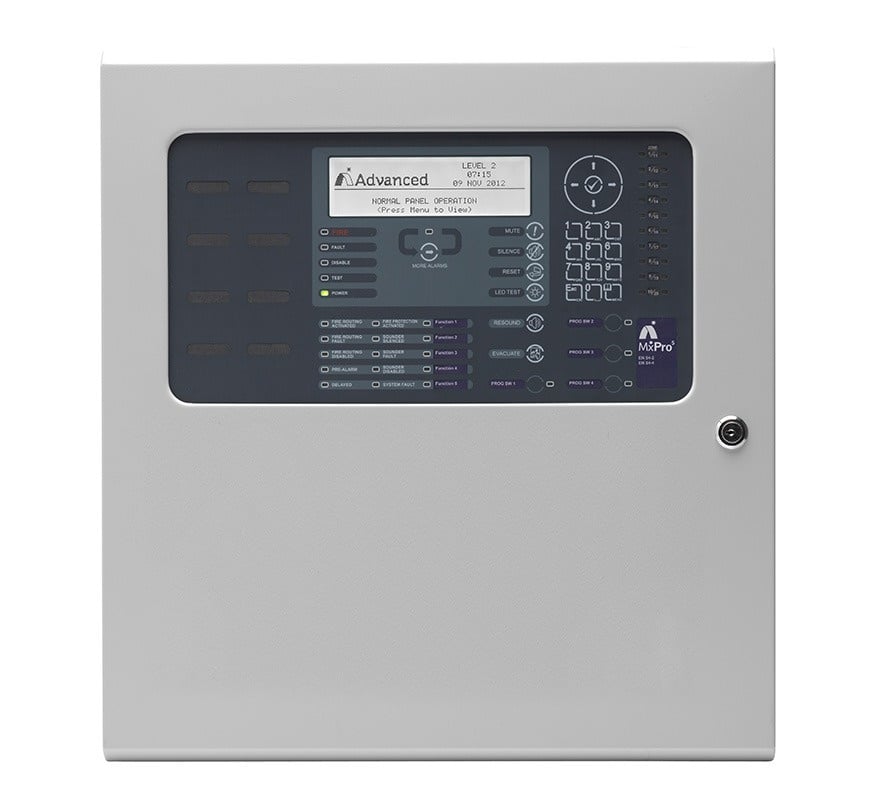

The Advanced MX-5101L is an MxPro 5 series single-loop analogue addressable fire alarm control panel in the large enclosure, for use with Apollo (XP95 / Discovery) and Hochiki ESP protocol devices. It is supplied with a single loop driver card, two on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels and 25 system LEDs.
Powerful cause-and-effect programming, dynamic zoning and enhanced trace diagnostics make it suitable for a wide range of sites, from small buildings to large, complex multi-area systems. It is compatible with AdvancedLive fire panel monitoring (UK and Ireland only).
Key features
- Apollo (XP95 / Discovery) and Hochiki ESP protocol support
- Dual flash-based microprocessors with real-time clock and enhanced trace diagnostics
- White backlit 240 x 64 graphical LCD with tactile alphanumeric keypad
- 20 programmable zonal LEDs with slide-in labels, plus 25 system LEDs
- 4 programmable function buttons with LED confirmation
- Up to 200 fire zones per panel by default, allowing full EN 54 compliance without additional hardware; up to 2,000 zones when networked
- Auto-learn, loop detection and on-board scope facility for easier commissioning and fault finding
- On-board Ethernet for AdvancedLive fire panel monitoring (UK and Ireland only)
- Dedicated USB and RS232 ports; programmable from the keypad or with PC-NeT-022 configuration software
- Integral P-Bus for system expansion with option cards
- Optional network card (MXP-503 standard or MXP-509 fault-tolerant) for peer-to-peer networking in a fault-tolerant loop or radial format
- Robust removable equipment chassis with plug-in connectors
- Optional on-board printer (medium, large and large-deep enclosures)
- 3-year warranty
Technical specifications
-
Loops: 1
-
Protocol: Apollo XP95 / Discovery and Hochiki ESP
-
Devices per loop: Protocol dependent
-
Loop current: 500mA
-
Fire zones: 200 per panel, 2,000 networked
-
Sounder circuits: 2 x 1A programmable
-
On-board relays: 2 x 1A 30V AC/DC programmable (10mA, 5V min), expandable to 4 with MXP-507
-
Auxiliary supply: 1 x 24V 500mA
-
Inputs: 1 x monitored programmable input; programmable key switch inputs: 8 inputs
-
Total output current: 3A maximum (loop, sounders and auxiliary combined)
-
Mains supply: 200-240V AC 50-60Hz (+10% / -15%), 1.0A max
-
Charger: 1A, temperature compensated
-
Ethernet: 10-Base-T / 100-Base-T (AdvancedLive connectivity, UK and Ireland only)
-
Ports: 1 x RS232, 1 x USB B type
-
Event log: 5,000 event and diagnostic plus 500 fire
-
Enclosure: Steel, IP30, RAL 7035
-
Dimensions (H x W x D): 475 x 450 x 120mm
-
Cable entries: 19 x top, 11 x rear, 2 x bottom (20mm knockouts)
-
Battery capacity: 24V 4Ah minimum, 24V 18Ah maximum internal (batteries not included)
-
Operating temperature: -5°C to 40°C
-
Humidity: 95% RH max
-
Approvals: EN 54-2, EN 54-4, EN 50130-4, EN 55032, EN 62368-1, EN IEC 63000
