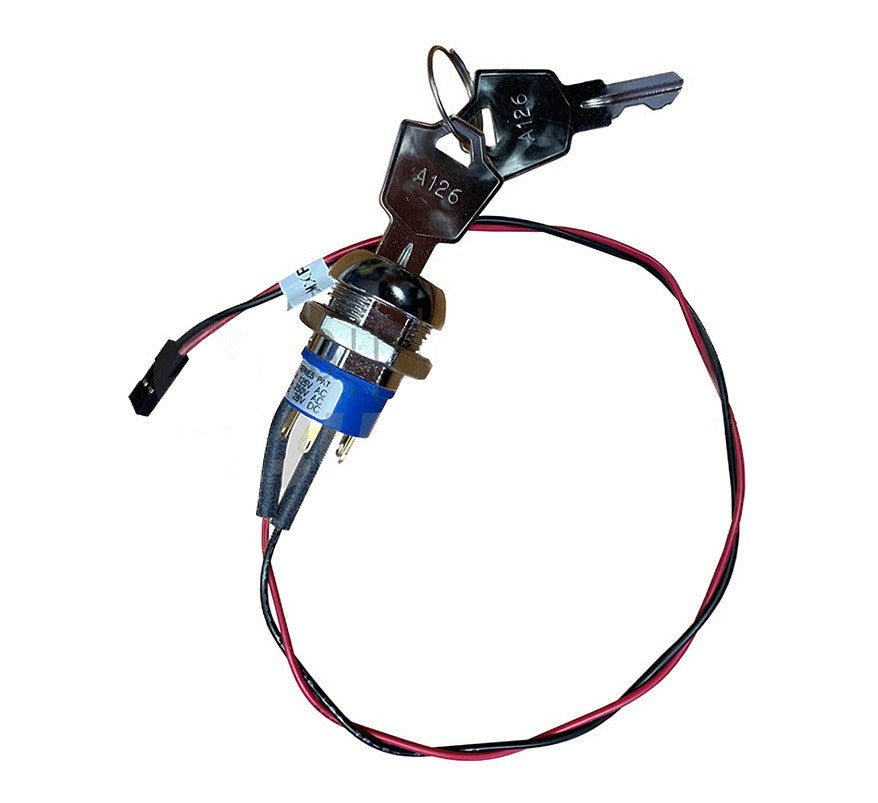

Advanced MXP-516 2-Pos Key switch (trapped) for MX-5000

The Advanced MXP-516 is a 2-position, trapped key switch assembly for MxPro 5 (MX-5000) fire alarm control panels. MxPro 5 panels support direct installation of individual key switches, which can be programmed for functions such as enable/disable, group isolation, class change or sensitivity mode change.

Key features

• 2-position switch with trapped key
• Enable/disable controls
• Group isolate to disable inputs and outputs across a network
• Start or enable a class change
• Change multi-sensor or device sensitivity mode
• Simple to install and configure
• Up to 8 key switches on MxPro 5 2-loop and 4-loop panels (limited to 4 if an on-board printer is fitted); 1 on the 1-loop panel

Technical specifications

• Part number: MXP-516
• Type: 2-position key switch assembly, trapped
• Compatibility: All MxPro 5 series control panels
• Spare switch only: MXS-516
