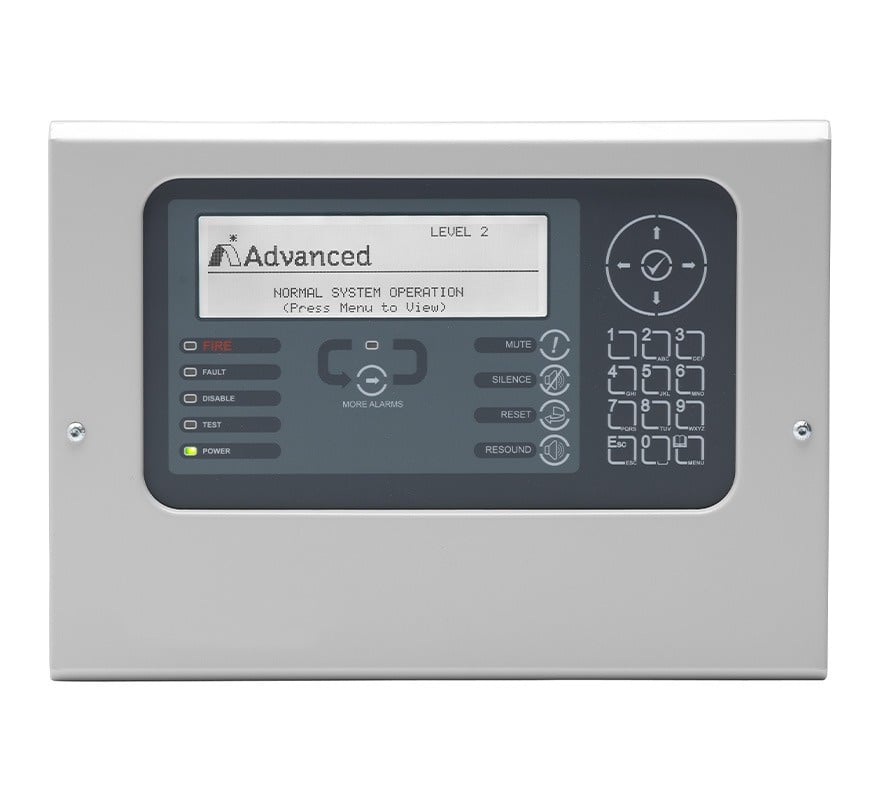

The Advanced MX-5020 is the compact Remote Control Terminal (RCT) for MxPro 5 networked fire alarm systems. It gives display and control of the networked system from a remote location, using the same graphical interface as the MxPro 5 panels.
Key features
- Same graphical LCD user interface as the MxPro 5 fire panels
- Connects to MxPro 5 panels over the same 2-core Ad-NeT / Ad-NeT+ network cable, with an integral network interface
- View information from across the network, with display filtering by zone or sector
- Sector-based Silence, Mute, Resound and Reset controls: for example, users can reset fires in their own building while fires elsewhere are displayed but cannot be reset
- Buzzer mute, view, enable/disable and test facilities
- Programmable switch input and monitored external supply fault input
- Optional level 2 access enable key switch
- Programmable from the on-board keypad or with PC tools; installer logo can be shown on the display
- 3 year manufacturer's warranty
Technical specifications
-
Display: White backlit 240 x 64 graphical LCD
-
LED indicators: 2 red, 1 green and 3 amber
-
Controls: Mute, Reset, Silence and Resound
-
Power supply input: 24V DC, 115mA (operating range 15-30V)
-
Zones: Up to 2,000
-
Ports: 1 x USB
-
Enclosure: Steel, IP30, RAL 7035
-
Dimensions (H x W x D): 218 x 300 x 44mm (back box when recessing: 218 x 300 x 30mm)
-
Cable entry: 20mm knockouts, 4 x top and 4 x rear
-
Approvals: EN 54-2, EN 54-4
