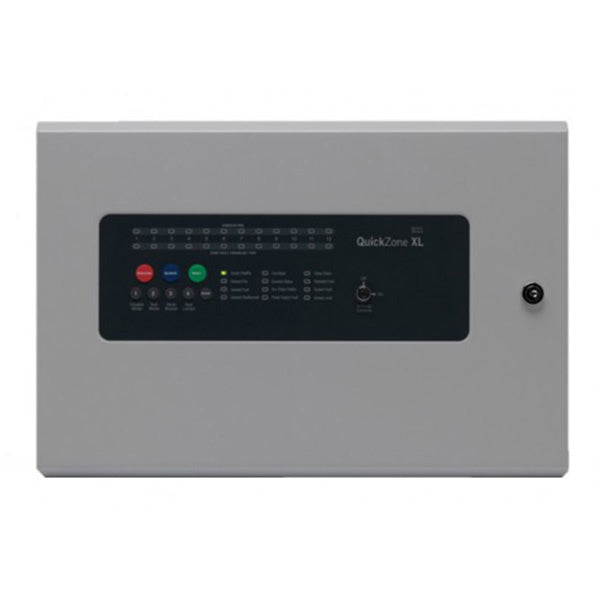

Advanced QZXL-8HS QuickZone XL - 8 Zone panel (high spec)

The Advanced QZXL-8HS QuickZone XL is an 8-zone conventional / Twin Wire (Sav-Wire) fire alarm control panel with integral power supply and space for standby batteries, approved to EN 54-2 and EN 54-4. It is supplied with the high specification zone card fitted, which adds two further monitored sounder circuits, programmable switched negative outputs and a programmable relay. The panel is easy to install and maintain and simple for the end user to operate.

Level 2 controls include Resound, Silence and Reset, plus disable and test modes; Level 3 allows sounder resound options, dependency settings, buzzer volume, the event log and panel-wide settings such as access codes and delays. It supports an extensive range of conventional fire detectors, including Apollo, Argus, Hochiki and Nittan; Twin Wire mode requires special 'Sav-Wire' detector bases and polarised 470 ohm call points.

Key features

• 8 fire zones (high specification zone card fitted)
• Two additional monitored sounder circuits, programmable switched negative outputs and one programmable relay from the high specification card
• Conventional or Twin Wire (Sav-Wire) zone circuits, selectable by DIL switch
• Two monitored sounder circuits as standard
• Fire and fault volt-free changeover relays, plus fire and fault switched negative outputs
• Class change and alert programmable inputs
• Dependency modes A, B and C
• Test mode, with or without sounders
• Integral detector removal monitoring
• Key switch or code entry for activation of controls
• Integral 3A switch mode PSU with space for up to 2 x 7.0Ah batteries
• Can support up to 8 fully functional repeater panels
• Modular expansion zone cards available
• Alarm load of 2.4A shared across all sounder outputs

Technical specifications

• Number of fire zones: 8
• Zonal circuit configuration: Conventional or Twin Wire (selectable by DIL switches)
• Controls: 3 colour-coded buttons (Resound, Silence and Reset), 1-4 numerical buttons and Enter
• Key switch input: Level 2 access enable key switch or code entry
• On-board sounder circuits: 2 monitored (1A resettable fuse); a further two available with the high specification card
• On-board relays: 2 auxiliary clean changeover relays (1 Fire, 1 Fault), 3A max at 30V DC
• Mains supply: 230V 50Hz (+10% / -15%), 1.2A max
• Auxiliary supply: 28V DC 400mA continuous
• Programmable inputs: Class change and alert
• Battery capacity: 2 x 7.0Ah 12V SLA, internal
• Charger current: 1.34A (27.0V DC at 20°C, temperature compensated)
• Networking: Fully functional repeater panel via plug-in communications PCB
• Enclosure: Lockable steel, IP30, RAL 7035
• Cable entries: 20 x top, 8 x rear, 4 x base (20mm knockouts)
• Dimensions (H x W x D): Back box 300 x 450 x 85mm; door 310 x 460 x 25mm
• Approvals: EN 54-2:1997 + A1:2006; EN 54-4:1997 + A1:2002 + A2:2006
