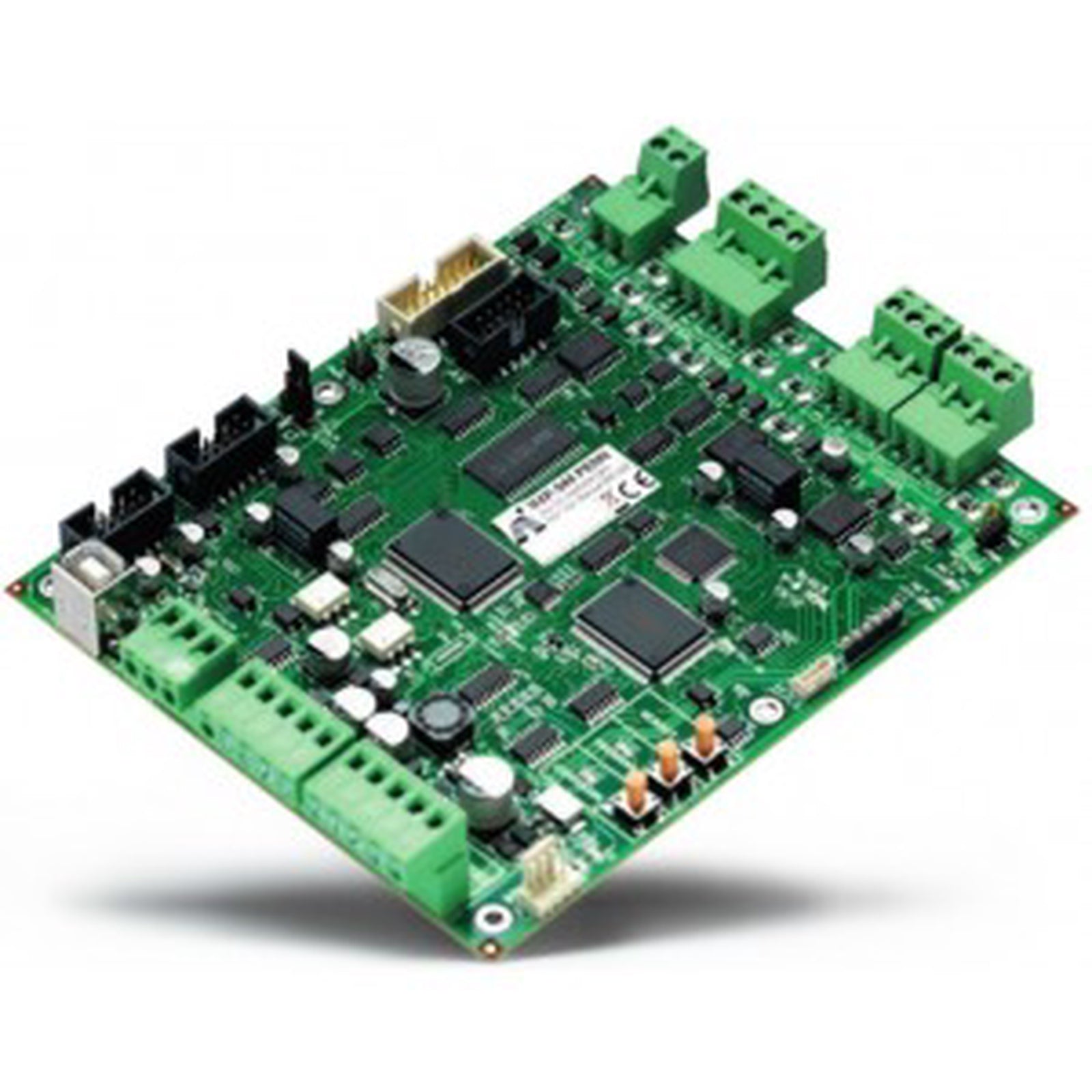

The Advanced MXP-545/FT is the PENN (Peripheral Expansion Network Node) interface module with a built-in fault-tolerant network interface. It brings MxPro 5 fire panel functionality to bespoke graphical mimics, remote inputs and outputs and other special-build applications, connecting peripherals to the network without installing additional panels.
Compatible expansion cards include input (MXP-537), relay (MXP-035), mimic driver (MXP-539), 16-way switch (MXP-538), fan/damper control (MXP-543), zone monitor (MXP-536), sounder (MXP-034) and ESPA pager interface (MXP-547). A display card (MXS-504), printer (MXP-512) and LED indicators (MXP-513) can also be added.
Key features
- Install peripherals in remote locations without an additional panel
- Built-in fault-tolerant (FT) network interface
- Up to 200 nodes in FT configuration
- Supports up to 32 P-Bus modules (16 of any one type)
- Dual-feed monitored 24V DC power inputs
- Switch input for general purpose or external PSE fault monitoring
- RS232 (PC configuration, external printer or MXP-547 ESPA) and USB Type B
- Plug-in terminal blocks; mounts on chassis plates such as MXM-515-6U and MXM-515-8U in MX-5000 and MX-5000R enclosures
Technical specifications
-
Power supply: 15-30V DC (24V DC nominal), dual-feed monitored inputs
-
Supply current: 90mA typical at 24V DC (fault-tolerant)
-
Network: Advanced fault-tolerant (FT) RS485
-
P-Bus: Advanced peripheral bus RS485
-
Serial interfaces: USB and RS232 (isolated)
-
Switch input: Non-monitored or monitored (3K3 EOL, 680R active)
-
Wire gauge: 0.5-2.5mm² (12-24 AWG)
-
Operating temperature: -5°C to 49°C
-
Humidity: 95% RH non-condensing
-
Dimensions (H x W x D): 153 x 127 x 25mm
