Advanced QZ-2 QuickZone - 2 Zone panel

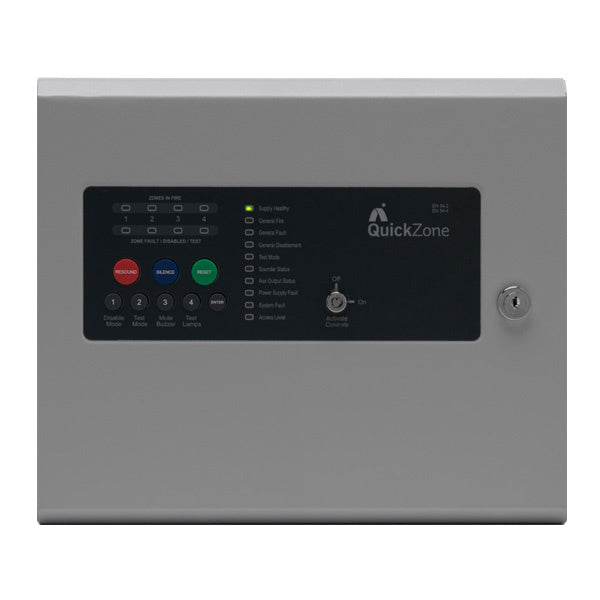

The Advanced QZ-2 QuickZone is a 2 zone conventional / twin wire (Sav-Wire) fire alarm control panel with an integral power supply and space for standby batteries. It is approved to EN 54-2 and EN 54-4 and supports a wide range of conventional detectors, including Apollo, Argus, Hochiki and Nittan.

Two fire zone circuits and two monitored sounder circuits are provided, with fire and fault volt-free changeover relays, fire and fault switched negative outputs, and class change and alert inputs. Twin wire mode is selected by DIL switch and needs Sav-Wire detector bases and polarised 470Ω call points.

Key features

• 2 conventional or twin wire zones
• 2 monitored sounder circuits
• Fire and fault relays
• Class change and alert inputs
• Type A dependency option
• Test mode
• Key switch or code entry for activation of controls
• Simple colour-coded buttons for control and programming
• Integral 1A switch mode PSU with space for 2 x 3.2Ah batteries
• One-year warranty as standard

Technical specifications

• Zones: 2
• LED indicators: 5 red (1 x fire, 4 x zonal), 1 green (power), 13 amber (4 x zonal, 9 x fault and system)
• Sounder circuits: 2 monitored (500mA fused)
• On-board relays: 2 auxiliary clean changeover relays (1 fire, 1 fault), 3A max at 30V DC
• Mains supply: 230V 50Hz (+10% / -15%), 1.0A max
• Auxiliary supply: 28V DC 400mA continuous
• Battery capacity: 2 x 3.2Ah 12V SLA, internal (batteries not included)
• Charger current: 630mA (27.0V DC at 20°C, temperature compensated)
• Enclosure: Lockable steel, IP30, RAL 7035
• Cable entries: 13 x top, 7 x rear (20mm knockouts)
• Dimensions (H x W x D): Back box 250 x 300 x 80mm; door 260 x 308 x 23mm
• Approvals: EN 54-2:1997 + A1:2006, EN 54-4:1997 + A1:2002 + A2:2006
