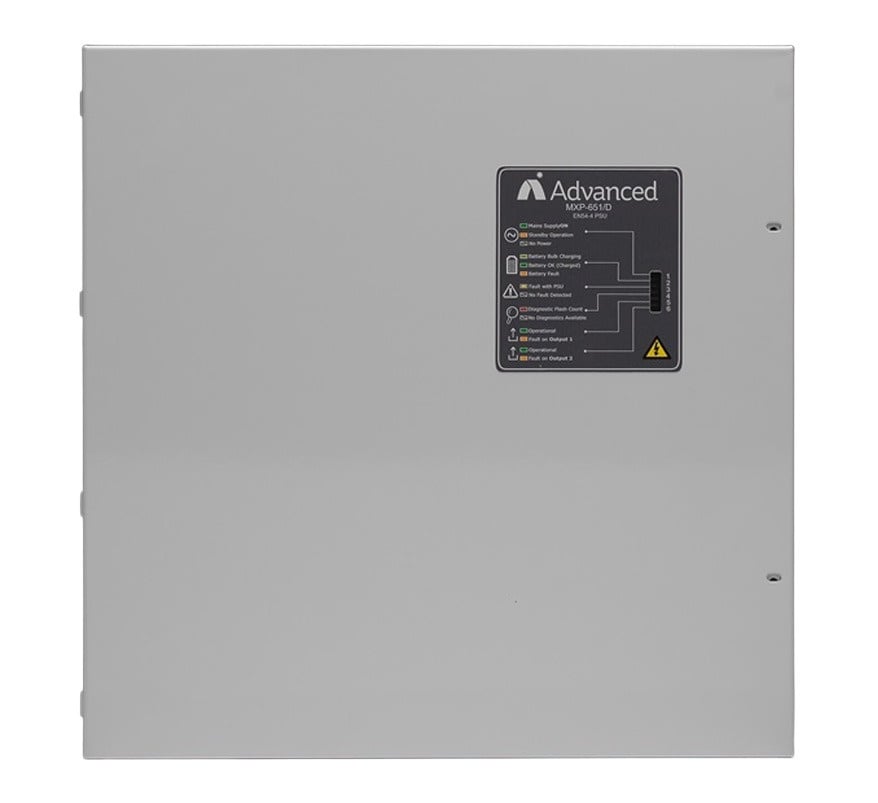

The Advanced MXP-650 is a 2.5A, 24V EN 54-4 power supply and battery charger in a large enclosure with space for up to two 17Ah batteries. It can be used with any fire alarm system, including automatic opening vent (AOV) systems, and complements the Advanced MxPro 5 range.
Key features
- High-efficiency switch-mode power supply with intelligent battery charging
- Two independently monitored 27.6V DC outputs
- Mains and battery monitoring, with a volt-free fault output
- Exterior status LEDs for quick diagnostics
- Load sharing, supporting rapid charging or brief high-current peak loads
- No output interruption during automatic switchover between mains and battery
- Deep discharge protection disconnects the battery from the load when the output falls below 21.6V
- Self-resetting battery fuse protection
- Suitable for any 24V fire alarm installation specifying EN 54-4 power supplies (e.g. BS 5839), and for EN 12101 smoke control and AOV systems
- Certified by VdS to EN 54-4 and by AFNOR to EN 12101-10
Technical specifications
-
Part number: MXP-650 (large enclosure)
-
Input supply: 195 to 265V AC, 50Hz nominal
-
Output voltage: 21.6V DC (Umin) to 28.8V DC (Umax)
-
Output current: 2.5A continuous load (ImaxB), 1.75A battery charge (ImaxA), based on 17Ah batteries
-
Inrush current: 25A max. at 25°C, 230V AC, for 10ms
-
Mains fuse: T2.0A 20mm 250V AC HRC
-
Fault output: Volt-free change-over contacts (SPDT), 1A at 30V DC
-
Status indication: Mains, battery fault, PSU fault, diagnostic, output 1 and output 2
-
Dimensions (H x W x D): 420 x 400 x 80mm
-
Battery space: Up to 2 x 17Ah (batteries not included)
-
Weight: 5.8kg excluding batteries, 18kg including batteries
-
Enclosure: 1.2mm steel, RAL 7035, IP30 (indoor use only)
-
Operating temperature: -10°C to 40°C at 95% RH
-
Storage temperature: -20°C to +80°C
-
Approvals: EN 54-4 (VdS 2541), EN 12101-10
