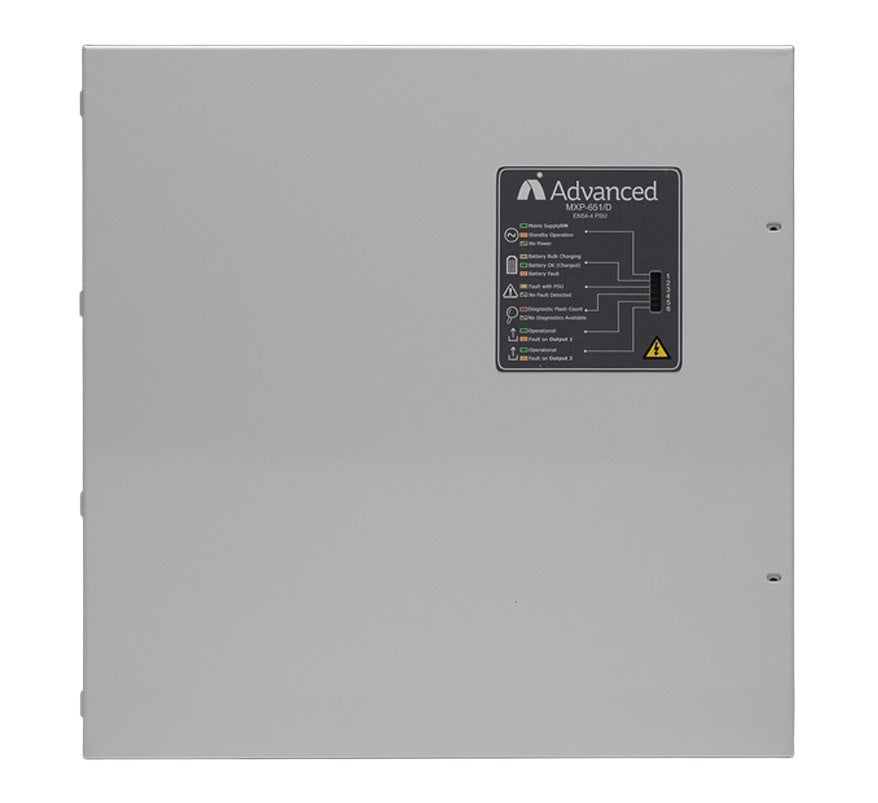

Advanced MXP-650/D 2.5A 24V EN54-4 PSE & Battery Charger - Deep (up to 2x 24Ah or 38Ah batteries)

The Advanced MXP-650/D is a 2.5A 24V EN 54-4 power supply and battery charger in the deep enclosure, which has space for 2 x 24Ah or 38Ah standby batteries. It can be used with any fire alarm system that needs a 24V supply and specifies EN 54-4 power supplies (for example to the BS 5839 code of practice), and with EN 12101 and AOV systems.

It is a high-efficiency switch-mode unit with intelligent battery charging, mains and battery monitoring and two independent volt-free outputs. Deep discharge protection disconnects the battery if there is a long mains failure, and exterior LEDs give quick status diagnostics.

Key features

• 2.5A output in a deep enclosure for up to 2 x 24Ah or 38Ah batteries
• Universal AC input
• Certified by VdS to EN 54-4 and EN 12101-10
• Independently monitored dual 27.6V DC outputs
• Two independent volt-free outputs
• Intelligent battery charging with mains and battery monitoring
• Deep discharge protection: battery disconnected below 21.6V
• Self-resetting battery fuse protection
• No output interruption on changeover between mains and battery
• Status LEDs for quick diagnostics

Technical specifications

• Part code: MXP-650/D
• Input supply: 195-265V AC, 50Hz nominal
• Output voltage: 21.6V DC (Umin) to 28.8V DC (Umax)
• Output current: 2.5A continuous load (ImaxB), 1.75A battery charge (ImaxA), based on 17Ah batteries
• Inrush current: 25A max at 25°C, 230V AC, for 10ms
• Mains fuse: T2.0A 20mm 250V AC HRC
• Enclosure (H x W x D): 420 x 420 x 180mm deep enclosure, space for 2 x 24Ah or 38Ah batteries
• Weight: 9.7kg excluding batteries
• Material / colour: 1.2mm steel / RAL 7035
• Environment: Indoor use only, IP30
• Temperature: Operating -10°C to 40°C at 95% RH; storage -20°C to 80°C
• Fault output: Volt-free changeover contacts (SPDT), 1A at 30V DC
• Status indication: Mains, Battery Fault, PSU Fault, Diagnostic, Output 1 and Output 2
