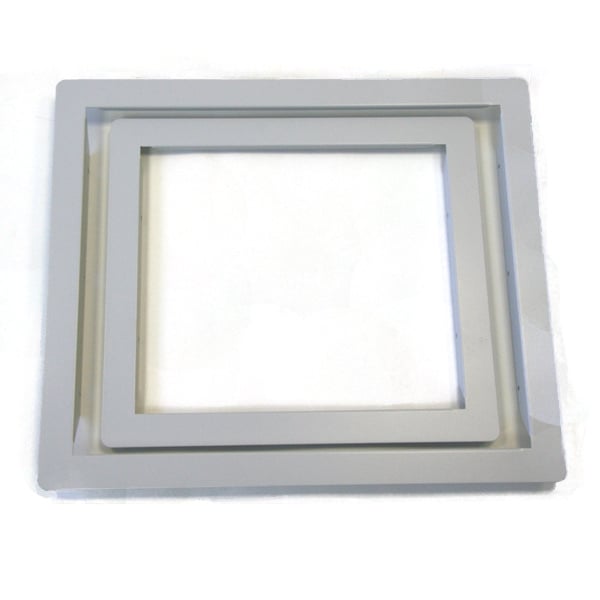

The Advanced MXM-503 is a semi-flushing bezel for the MxPro 5 MX-5000 large enclosure. It is colour matched to Advanced fire alarm control panels in RAL 7035 and supplied with a fitting kit for quick, easy semi-recessing.
When recessing, allow an extra 5mm clearance on all sides so the bezel can be fitted to the back box. The outer door always stands proud of the finished surface.
Key features
- Semi-flush fitting for MxPro 5 equipment
- Picture-frame effect with 30mm flange
- Colour matched in RAL 7035
- Supplied with fitting kit
- Back box carries an identification mark for positioning pilot drill holes
Technical specifications
-
Part code: MXM-503
-
Bezel dimensions: 475mm (H) x 450mm (W)
-
Flange: 30mm
-
Back box recessing depth: 105mm
-
Colour: RAL 7035
