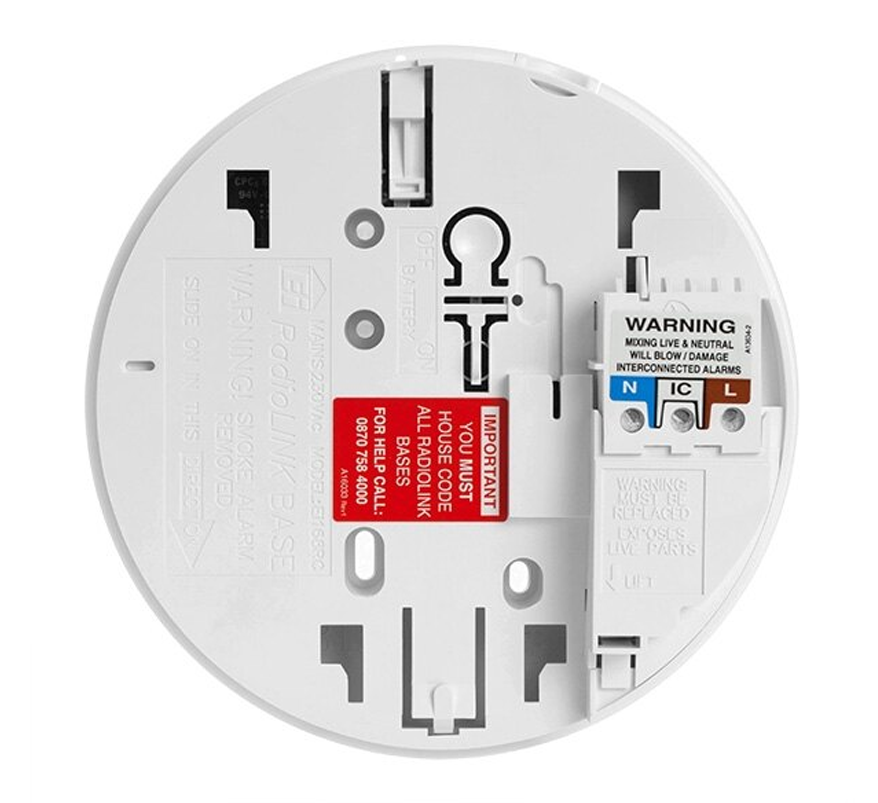

Aico Ei168RC Mains Powered RadioLINK Base with Lithium Back-Up Battery

The Aico Ei168RC RadioLINK Base is a mains powered easi-fit mounting plate with built-in RadioLINK wireless interconnection. It is used in place of the standard easi-fit base on Aico 140e Series alarms (Ei146e and Ei144e), so that when one alarm is triggered all alarms in the system sound.

It has a rechargeable lithium cell back-up and can also be fitted to one alarm in an existing hard-wired system to create a hybrid wired and wireless system. Once installed, alarms are House Coded together to protect the system from interference.

Key features

• Adds RadioLINK wireless interconnection to Aico 140e Series alarms
• Mains powered with rechargeable lithium cell back-up
• Compatible with other Aico wireless interconnection products
• Allows hybrid hard-wired and wireless systems
• Eliminates difficult wiring runs and makes adding alarms easier

Technical specifications

• Supply voltage: 230V AC, 50Hz
• Battery back-up: rechargeable lithium
• RF frequency: 868.499MHz RadioLINK protocol
• RF power: +5dBm
• RF protocol: proprietary RadioLINK multi-path, multi-repeater mesh
• RF range: 30m
• System size: 12 RadioLINK devices maximum
• Operating temperature: 0°C to 40°C; storage 0°C to 35°C
• Humidity range: 15% to 95% relative humidity
• Indicator: blue LED for RF and fault signals
• Plastic material: UL94 V0 flame retardant
• Dimensions (product): 150mm diameter x 37mm (20mm installed)
• Dimensions (boxed): 153mm x 153mm x 40mm
• Weight: 235g (boxed)
• Guarantee: 5 years
• Approvals: CE, EN300220-3 (RF)
