Aico Ei170RF RadioLINK Alarm Module for the Deaf & Hard of Hearing

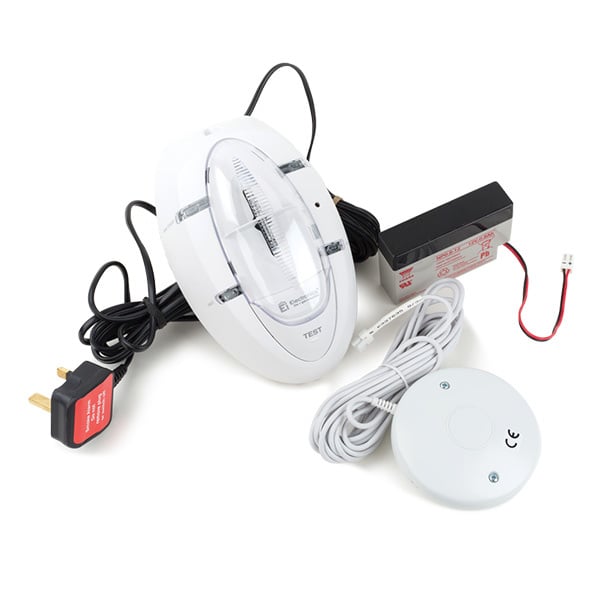

The Aico Ei170RF is a RadioLINK alarm module for people who are deaf or hard of hearing. It combines a high-intensity LED strobe light and a vibrating pillow pad that activate when interconnected smoke, heat or CO alarms are triggered. It links into the alarm system wirelessly using Aico RadioLINK, so no cabling is needed between the Ei170RF and the alarms, reducing disruption for occupants during installation.

Key features

• High-intensity LED strobe with a wide light output angle
• Vibrating pillow pad for fitting under a mattress or pillow; strong pulsed vibrations to wake sleepers
• RadioLINK wireless interconnection; House Coded into the system
• Compatible with Aico 3000 Series, 600 Series RadioLINK and 140 Series alarms (with the appropriate RadioLINK base or module) and RadioLINK CO alarms
• Integral Test button checks the strobe and vibration pad and sends a RadioLINK test signal to the system
• Mains powered with a sealed rechargeable back-up battery
• Green power indicator and red alarm indicator

Technical specifications

• Supply: 230V AC, 50Hz mains
• Back-up: built-in long-life sealed rechargeable battery
• Strobe flash rate: 0.8Hz
• Radio frequency: 868MHz band
• RF range: 30m as a guide between RadioLINK units (depends on building construction)
• System size: up to 12 RadioLINK units
• Cabling: transformer hard-wired to the strobe with 4m low-voltage cable; 2m mains cable with 13A plug (3A fuse); pillow pad with locking plug and 5m cable
• Mounting: wall or surface
• Dimensions: strobe 150 x 86 x 28mm; vibrating pad 98 x 34mm
• Weight: 604g
• Operating temperature: -10°C to 40°C
• Humidity: 15% to 95% RH
• Guarantee: 5 years
