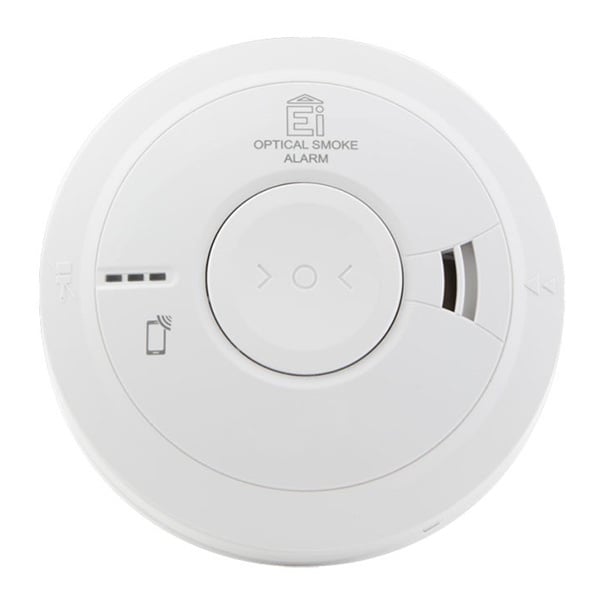

Aico Ei3016 Mains Powered Optical Smoke Alarm with Rechargeable Back-Up Battery

The Aico Ei3016 is a mains powered optical smoke alarm from the Aico 3000 Series, with a 10-year rechargeable lithium cell back-up. Its optical sensor is best for detecting slow, smouldering fires, making it suitable for hallways, landings, bedrooms, living rooms and dining rooms.

The Ei3016 interconnects with other Aico mains powered alarms by hard wire, and with an Ei3000MRF SmartLINK module it can be wirelessly interconnected. It works in hard-wired, RadioLINK or hybrid Aico systems.

Key features

• High-performance optical smoke sensor with smoke chamber design and integrated insect screen
• Automatic dust compensation with a self-monitoring mechanism that recalibrates the trigger point as dust builds up
• Mains powered with a 10-year rechargeable lithium cell back-up
• Built-in AudioLINK+ data extraction: read activation dates, sensor status and alarm life to a smartphone or tablet via the app
• SmartLINK compatible: add an Ei3000MRF module for wireless interconnection, data extraction and real-time notifications
• Compatible with other Aico mains powered devices
• Grade D1 and compliant with Scottish legislation
• Supplied with an easi-fit base
• 10-year guarantee

Technical specifications

• Sensor type: optical
• Supply voltage: 230V AC, 50Hz
• Power consumption: 0.25W (standby)
• Battery back-up: rechargeable lithium cells
• Sound level: 85dB(A) at 3m
• Button test: checks sensor, electronics and sounder
• Silence function: silences alarm for 10 minutes; silences fault beeps for 12 hours
• AudioLINK+: enabled
• SmartLINK: compatible via the Ei3000MRF module
• Memory: records last alarm event
• Fixing: easi-fit base (supplied)
• Humidity range: 15% to 95% relative humidity
• Indicator LEDs: green (power), red (alarm, silence mode, memory), yellow (fault event)
• Operating temperature: -10°C to 40°C
• Plastic material: UL 94 V0 flame retardant
• Dimensions (product): 150mm x 63mm
• Dimensions (boxed): 155mm x 155mm x 65mm
• Weight: 336g (product only), 383g (boxed)
• Standard: BS EN 14604:2005
• Guarantee: 10 years
