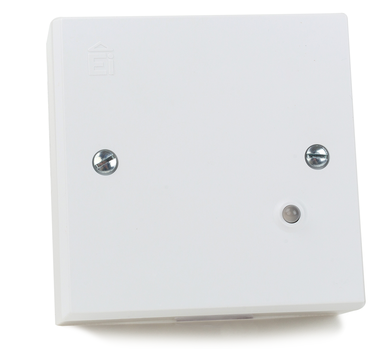

The Aico Ei408 is a battery-powered RadioLINK switched input module that triggers the alarms in an Aico system when an external device, such as a sprinkler system, is activated. When its volt-free input contacts close, it transmits a RadioLINK alarm signal to all other RadioLINK devices in the system. It is powered by sealed lithium cells with a 10-year life, giving a completely wire-free link to the alarms.
Key features
- Triggers the alarm system from an external volt-free switched contact
- RadioLINK wireless interconnection; House Coded into the system
- Works with Aico 140RC (with Ei168RC base), 160e (with Ei100MRF module) and 3000 Series (with Ei3000MRF module) alarms and RadioLINK-enabled CO alarms
- Tamper-proof sealed lithium cells lasting at least 10 years
- LED flashes green every 40 seconds to confirm a healthy supply; amber every 10 seconds when the cells are depleted
Technical specifications
- Power: built-in sealed lithium cells, 10-year life
- Input: volt-free switched contacts
- Radio frequency: 868MHz band
- RF range: 30m as a guide between RadioLINK units
- System size: up to 20 RadioLINK units
- Mounting: surface
- Operating temperature: 4°C to 40°C
- Humidity: 0 to 90% RH
- Dimensions: 90 x 90 x 43mm
- Weight: 240g (including packaging)
- Guarantee: 5 years
