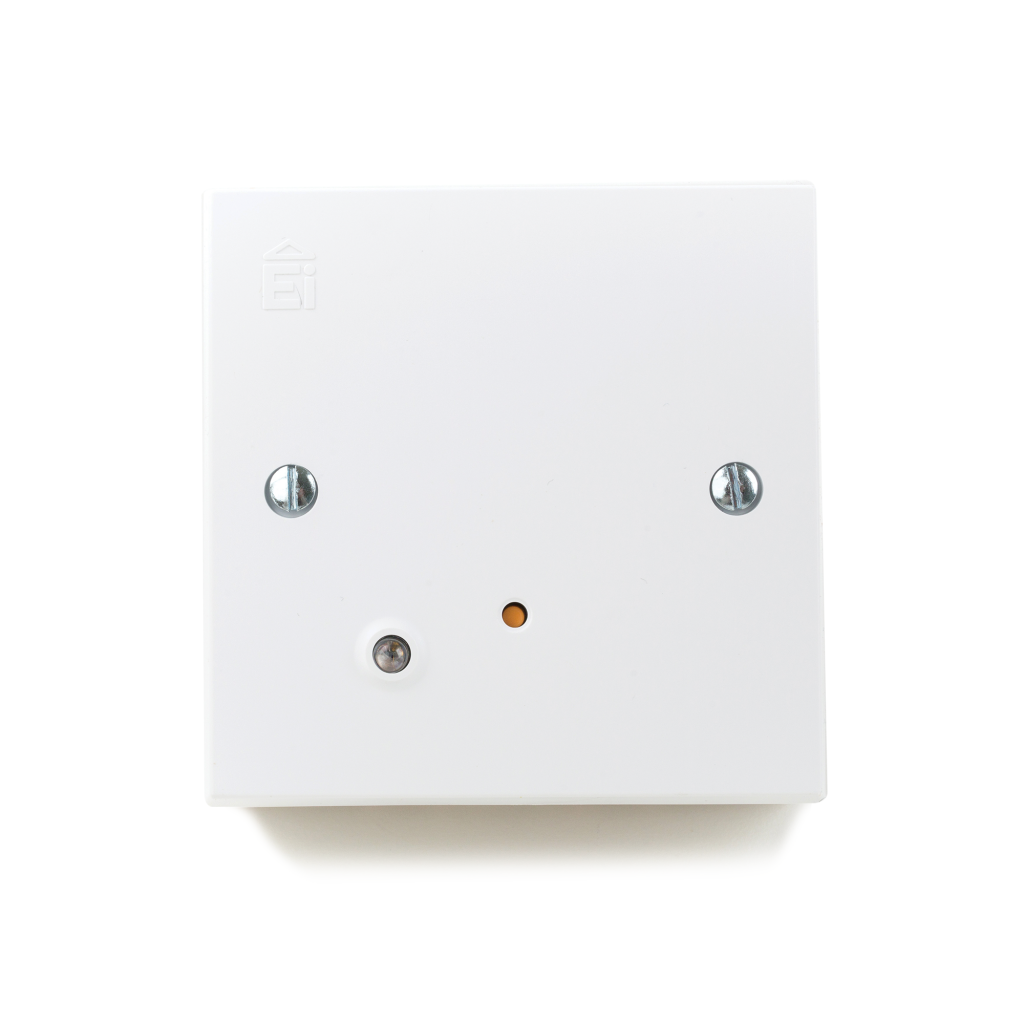

Aico Ei413 RadioLINK Panel Interface Module

The Aico Ei413 RadioLINK Panel Interface Module provides two-way communication between Aico RadioLINK alarms and a fire alarm or security alarm panel. It decodes fire, CO and fault signals from RadioLINK devices and switches the matching contacts to the panel, and when the panel activates it transmits a RadioLINK signal to sound the domestic alarms.

It is hard wired to the panel and powered from it (or from an external source), and connects wirelessly to the alarms, removing the need for cabling between the module and the smoke, heat and CO alarms.

Key features

• Two-way interface between Aico RadioLINK alarms and a panel
• Separate fire, CO and fault contact sets to the panel
• Volt-free input from the panel to sound the RadioLINK alarms
• Powered from the panel, no cabling to the alarms needed
• Surface mounting, or fits inside non-metallic panel casings

Technical specifications

• Supply: 11 to 30V DC from the alarm panel
• Current: 15mA standby, 60mA alarm maximum
• Panel contacts: three sets (NO, NC, common) rated 30V at 1A
• Radio frequency: 868MHz band, 1% duty cycle
• System size: up to 12 RadioLINK units
• RF range guide: 30m maximum between RadioLINK units
• Ambient temperature: 0°C to 40°C
• Dimensions: 88mm x 88mm x 28mm
• Weight: 150g
• Guarantee: 5 years
