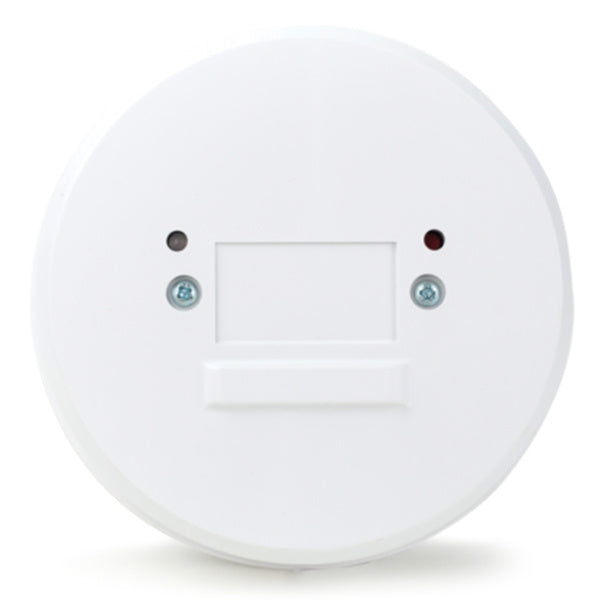

Aico Ei428 230V Mains Powered Relay Module

The Aico Ei428 is a 230V mains-powered RadioLINK relay module. When the alarms in the property activate, it switches volt-free contacts to trigger external devices such as a strobe light or telecare system. It receives the alarm signal wirelessly using Aico RadioLINK, so no cabling is needed between the module and the alarms.

It works with the Aico 140RC (on an Ei168RC RadioLINK base), 160e (with an Ei100MRF RadioLINK+ module), 3000 Series (with an Ei3000MRF SmartLINK module) and RadioLINK carbon monoxide alarms. It can be set up to give a 230V output, or a 24V output using an external 24V supply. Built-in rechargeable lithium cells keep the relay working during a mains failure.

Key features

• Triggers external devices when RadioLINK alarms activate
• Volt-free contacts (normally open or normally closed), rated up to 240V AC / 5A
• Configurable for 230V output, or 24V output with an external supply
• Mains powered with rechargeable lithium back-up cells (minimum 10-year life)
• Green power LED; red flashing LED warns of depleted back-up
• Trunking knock-out and centre knock-out for easy installation
• 5 year guarantee

Technical specifications

• Model: Ei428
• Supply: 230V AC mains
• Back-up: rechargeable vanadium pentoxide lithium cells; powers the module for at least 2 months after mains failure
• Relay contacts: volt-free N/O or N/C, up to 240V AC / 5A
• Radio frequency: 868MHz
• Range: 30m maximum between RadioLINK units (guide)
• System size: up to 20 RadioLINK units
• Knock-outs: 1 x 25mm trunking; centre knock-out for recessed wiring
• Ambient temperature: 4°C to 40°C
• Humidity: 0 to 90% RH
• Dimensions: 140mm diameter x 27mm depth
• Weight (including packaging): 220g
• Guarantee: 5 years
