- Full icon-based, easy-to-use LCD display on the low level controller for ease of commissioning, testing and maintenance
- Aesthetically pleasing to suit modern architectural buildings and heritage sites
- Range 5 to 120 metres
- Laser assisted alignment combined with easy to use alignment LED's enables installation by one operator
- Separate Fire/Fault Relays per Detector
- Selectable sensitivity/threshold levels
Frequently bought together
Product details

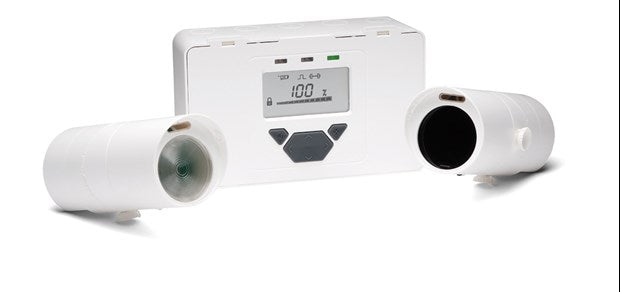

The Conventional End to End Beam Detector has been designed using the latest optical technology, incorporating modern industrial, electronic and software techniques. This detector offers cost effective protection of large, open area spaces with high ceilings. It is also very suited to applications where access to ceiling mounted smoke detectors presents practical difficulties.
The Conventional End-to-End Optical Beam Detector is ideal for applications where line of sight for the IR (infra-red) detection path is narrow and where the building structure uses reflective surfaces. It has also been designed to be aesthetically pleasing and thus can equally suit modern architectural buildings as well as heritage sites, particularly where ornate ceilings exist.
- Full icon-based, easy-to-use LCD display on the low level controller for ease of commissioning, testing and maintenance
- Aesthetically pleasing to suit modern architectural buildings and heritage sites
- Range 5 to 120 metres
- Laser assisted alignment combined with easy to use alignment LED's enables installation by one operator
- Separate Fire/Fault Relays per Detector
- Selectable sensitivity/threshold levels
- Automatic Gain control (AGC) for drift compensation
- * Adjustment bracket offers up to 180 degrees movement in both planes and a full 360 degree rotation. It also fits 29600-524 and 29600-525 heads.
