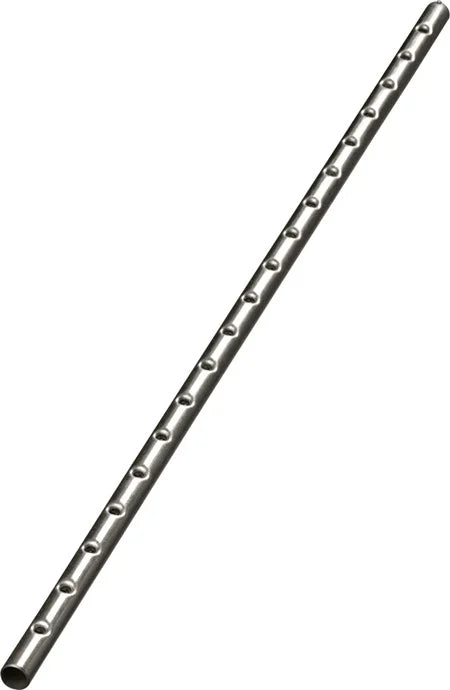

The Apollo 53541-171APO is a longer sampling tube for the Apollo duct smoke detector, for ducts 750mm to 1500mm wide. The duct detector is supplied as standard with a 360mm sampling tube for ducts up to 540mm; longer tubes are ordered separately for wider ducts.
The perforated sampling tube spans the duct upstream of the exhaust tube, creating a pressure differential that draws air across the detector head. The tube should reach from one side of the duct to the other; it may need to be cut to slightly more than the duct width, supported through a hole in the opposite duct wall and closed with a red bung.
Key features
- Sampling tube for duct widths of 750mm to 1500mm
- For the Apollo duct smoke detector housing
- Can be cut to suit the duct width
Technical specifications
- Duct width: 750mm to 1500mm
- Compatibility: Apollo duct smoke detector (53546-021 conventional, 53546-022 analogue addressable)
- Duct detector air speed range: 0.5m/s to 20m/s
- Pressure differential (sampling to exhaust): 0.025 to 3mbar
- Manufacturer warranty: 10 years
