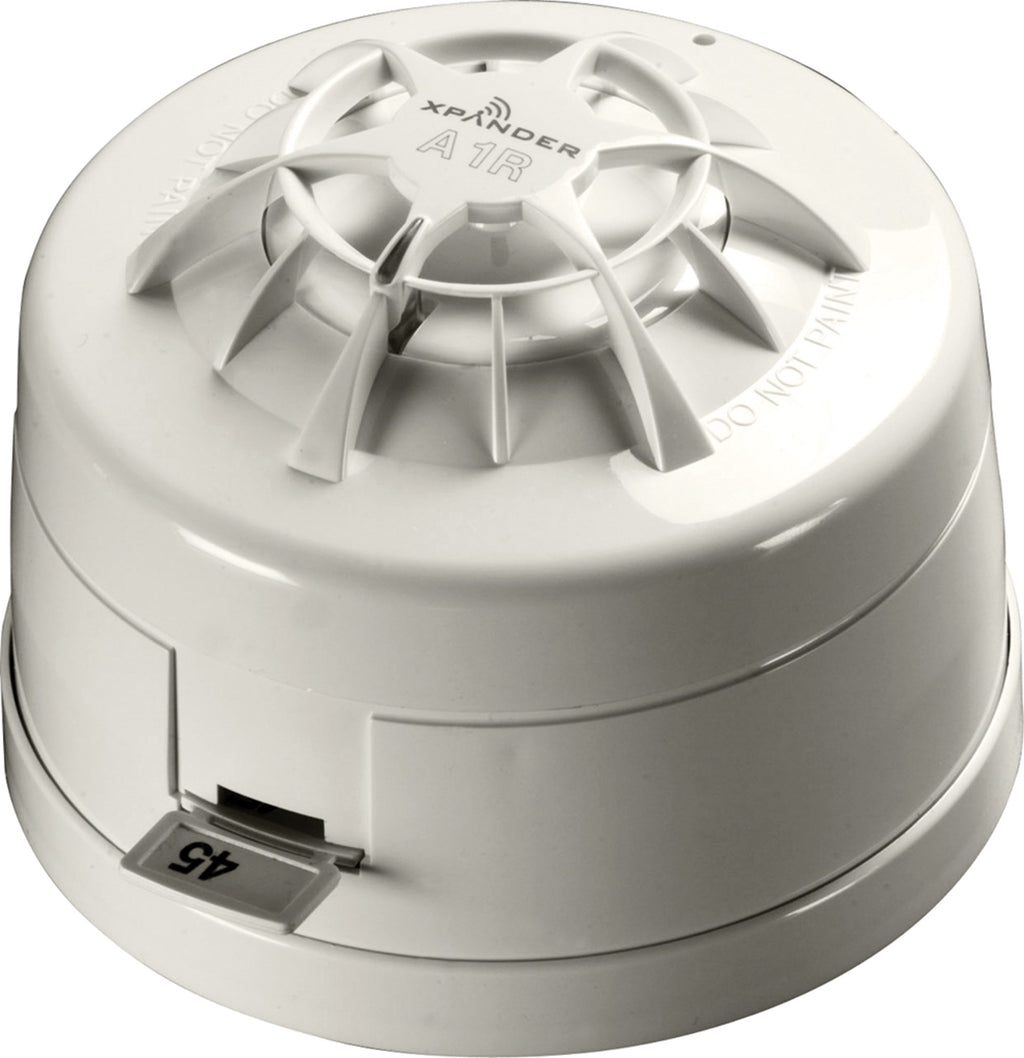

Apollo XPA-CB-11170-APO XPander Heat Detector (A1R) with Base
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 1 | Same day dispatch |
| UK Hub | 34 | 1 to 3 working days |
- EN54-5 A1R heat detector
- Can be used in areas where smoke detectors are unsuitable
- EN54-25 wireless fire detection communication
- XPert 7 addressing
- Supplied with mounting base
Frequently bought together
Product details
The Apollo XPA-CB-11170-APO is a wireless heat detector from the XPander range, supplied with its base, for kitchens, plant rooms and other areas where smoke detectors are unsuitable.
The XPander Heat Detector utilises an open-web casing which allows air to flow freely across a thermistor which measures the air temperature every 2 seconds. Its microprocessor uses algorithms to determine how fast the temperature is increasing, so a fire can be detected at an earlier stage than with a static detector. A rate-of-rise detector is generally preferred to a static heat detector, unless sharp increases in temperature are part of the normal environment in the area protected.
Key features
- EN54-5 A1R heat detector
- Can be used in areas where smoke detectors are unsuitable
- EN54-25 wireless fire detection communication
- XPert 7 addressing
- Supplied with mounting base
Specifications
- Part number: XPA-CB-11170-APO
- Dimensions (detector with base): 105mm diameter x 80mm
- Manufacturer's warranty: 10 years
Used for: wireless extension of Apollo addressable systems. Also see the XPander optical smoke detector and XPander open-area sounder.
Frequently asked questions
Is the base included?
Yes, this part number is the XPander A1R heat detector supplied with its mounting base.
What does A1R mean?
It is classified A1R to EN54-5. The detector measures the air temperature every 2 seconds and uses rate-of-rise algorithms, so it can respond earlier than a static heat detector.
Is it wireless?
Yes. XPander devices use EN54-25 wireless fire detection communication.
