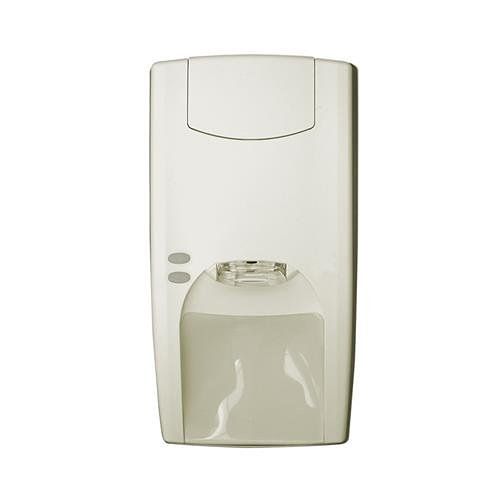

Name: Aritech EV1116AM Volumetric PIR Motion Sensor with Anti-Masking, 16m (52.5') Range
Brand: Aritech
SKU: EV1116AM
Price: 62.20 GBP
Availability: InStock

Aritech EV1116AM Volumetric PIR Motion Sensor with Anti-Masking, 16m (52.5') Range

Roll over image to zoom in Click on image to zoom

16m volumetric PIR/AM motion sensor.

Main Features

16m PIR Volumetric Detector with 11 curtains
Active IR Anti-Mask
CPNI approved

Specifications

Application/Usage	Wall Mount
Connectivity Technology	Wired
Depth	60.00mm
Features	Cloak and umbrella immunity; Full under crawl detection; Grade 3; Plug in electronics; Sealed Optics
Height	65.00mm
Indoor/Outdoor	Indoor
Input Voltage	9-15V DC
Limited Warranty	2-Year
Maximum Motion Sensing Distance	16m
Mount Type	Wall Mount
Product Type	Motion Sensor
Security Grade	Grade 3
Sensor Type	Infrared Sensor
TAA Compliant	No
Width	125.00mm
Colour	White
Manufacturer	Carrier
Maximum Viewing Angle	86°
Operating Temperature (T-T)	-10-55°C
Passive Infrared Sensor (PIR)	Yes
WEEE Compliant	Compliant

Downloads

Product Manual
