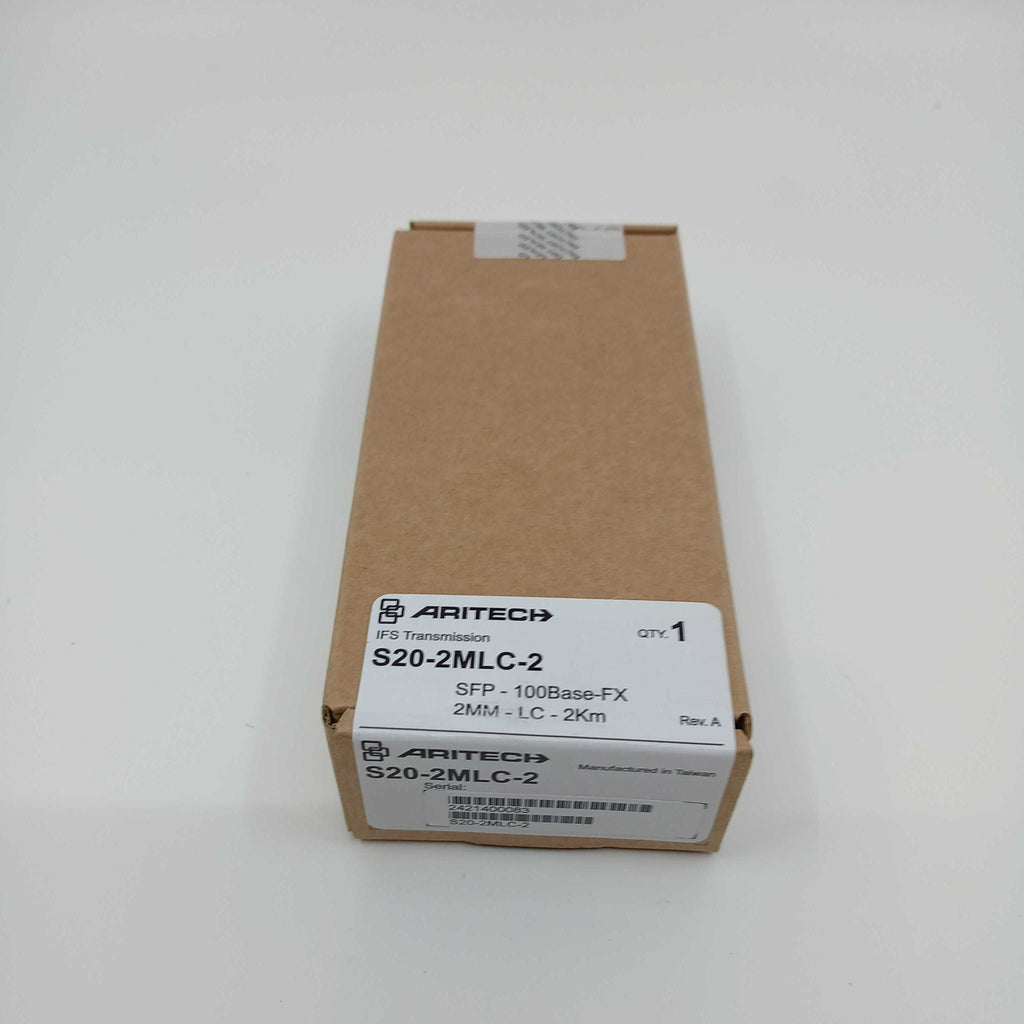

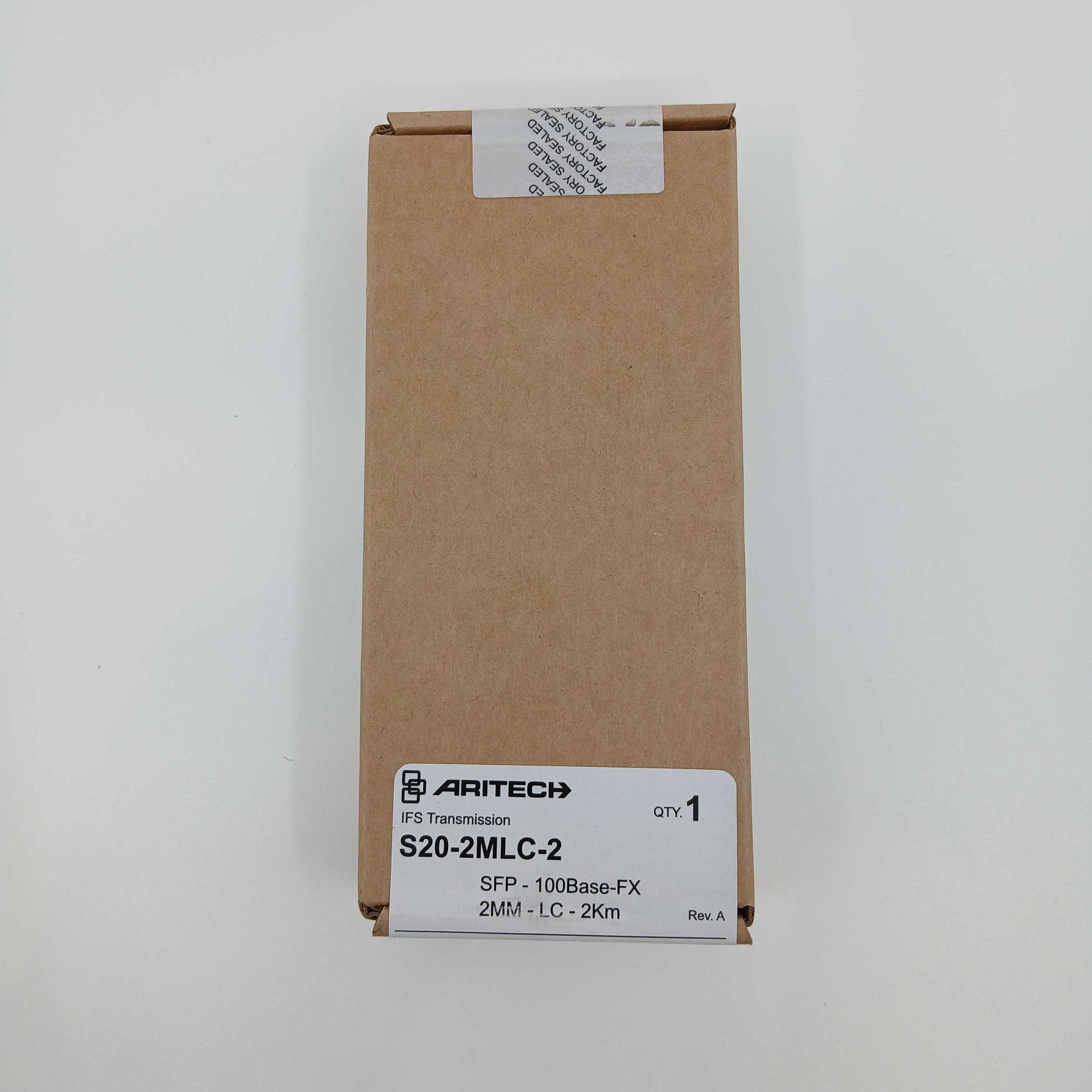

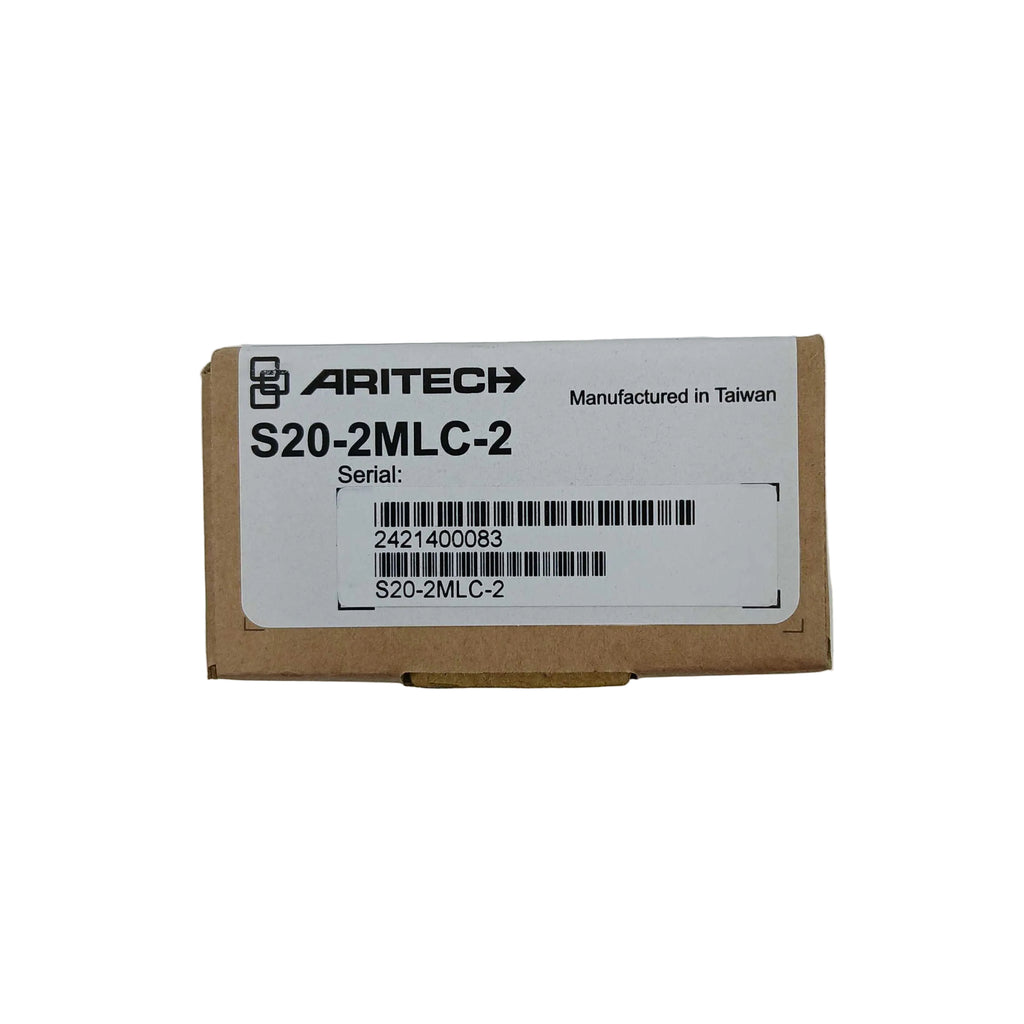

The Aritech S20-2MLC-2 is an SFP (mini-GBIC) fibre transceiver module for 100Base-FX Fast Ethernet over multimode fibre, for use in Aritech/KGS switch products with 100Base-FX SFP ports.
Key features
- SFP multi-source agreement (MSA) compliant
- Hot-pluggable, plug-and-play installation
- LC duplex receptacle
- Low power dissipation
- TTL signal detect indicator
- Class 1 laser product (IEC 60825 compliant)
Technical specifications
- PHY type: 100Base-FX, 100 Mbps
- Fibre: multimode, 2 fibres
- Wavelength: 1310 nm
- Maximum distance: 2 km
- Connector: LC
- Optical output power: -20 to -14 dBm; receiver -32 dBm; power budget 12 dB
- Operating voltage: 3.3 V DC
- MTBF: >50,000 hrs at 25°C
- Dimensions: 59 x 15 x 12.4 mm
- Weight: 18 g
- Operating temperature: 0 to +50°C; storage -40 to +85°C
- Relative humidity: 5 to 95% non-condensing
