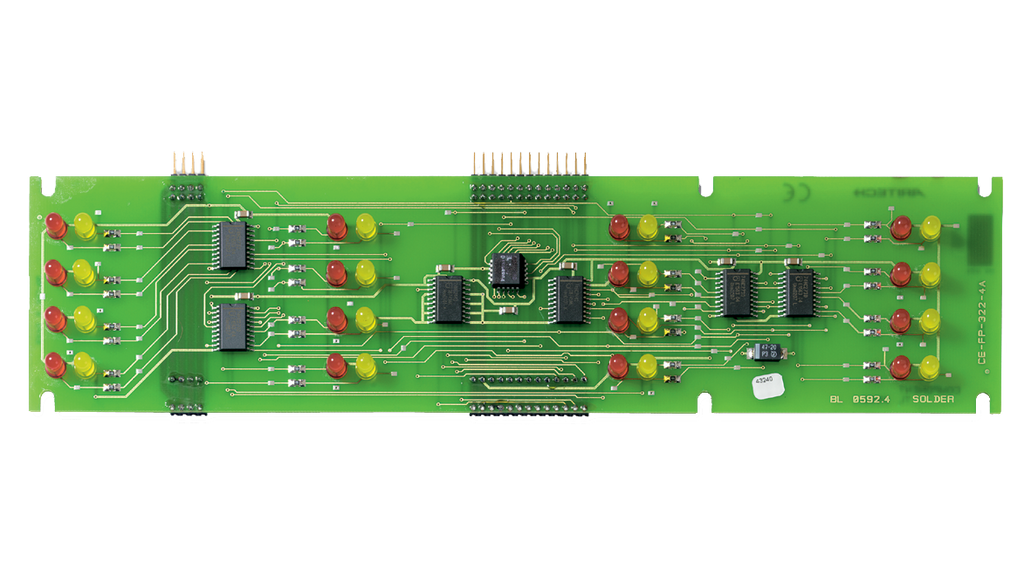

The Aritech ZE2016 is a 16-zone LED extension card for Aritech 1200/2000 series conventional fire panels. It extends the visible zone indications of the FP2864 and FR2064 fire panels and repeaters by 16 additional zones, with separate fire and fault LEDs for every zone, so that the status of each zone can be seen at a glance.
Key features
- Extends the visual zone LED display by 16 zones
- Fire and fault LEDs for every zone
- For FP2864 and FR2064 fire panels and repeaters
- No configuration required
- Supplied with nuts and washers for easy installation
Technical specifications
- Current consumption: 8 mA
- Dimensions: 267 x 64 mm
- Net weight: 70 g
- Operating temperature: -10°C to +50°C
- Storage temperature: -10°C to +70°C
- Relative humidity: 10 to 95%
- Certification: EN 54-2
