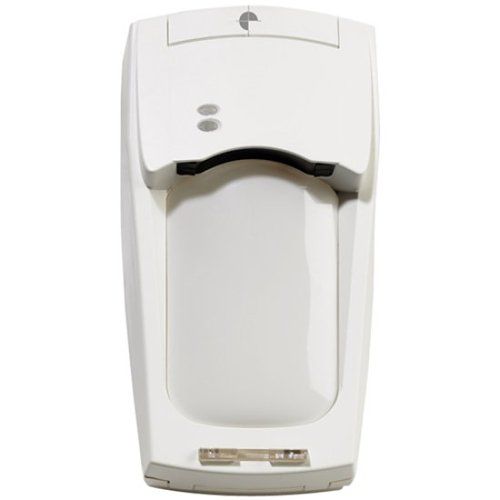

Aritech VE735AM Combined Volumetric and Long-Range PIR Motion Detector with Anti-Masking, 60m Range

The VE735AM is another Interlogix motion sensor using the V²E technology. This product uses the PIR part of VE735 together with multi-channel anti-masking. The V²E technology means the best possible PIR in the market with the highest ratio of detection to false alarm. The optical part of the VE735AM is identical to the VE735. The step & glide focus mirror with multi curtains are features unique to UTC Fire & Security to provide maximum coverage density and ensure easy installation. With the “High Density Optic” (HDO) mirror, the VE700AM series will provide you with more and wider curtains (and therefore untraceable detection gaps).

The VE735AM is the only AM motion detector on the market that can offer both 90° wide-angle and long-range detection patterns in one product. It is known that the best solution to protect a motion sensor from being masked is active IR technology. UTC Fire & Security has always served the market with the best available technology to achieve the highest AM performance. The VE735AM continues this trend by using the fourth generation of AM.

VE735AM uses five IR transmitters and receivers working in different frequencies. This results in various AM signals for the sensor. The AM circuit will not be triggered by the magnitude of modified light on each channel but with the relationship between the various signals. The multi-channels AM technology makes VE735AM capable of detecting any AM attempt, up to 30 cm from the detector. VE735AM is also immune to partial masking attempts, system malfunction insect presence, and white light jamming.
