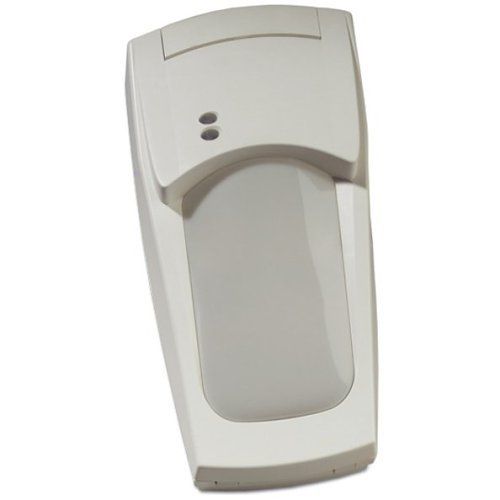

VE700 Series is the most intelligent PIR motion sensor with a reliability never seen in any PIR before. Thanks to the DSP-driven detection algorithm, it will filter out any false alarm signals from a stationary thermal source and react only to alarm signals from a moving source, such as an intruder. This makes the VE700 the best solution against false or un-wanted alarms where other PIR sensors would fail.
Main Features
Patented PYRO electric sensor
DSP driven detection algorithm
High density mirror optics
Absolute volumetric sensor
Left to right or right to left detection mode
Specifications
Application/Usage
Indoor
Connectivity Technology
Wired
Depth
66.0mm
Height
175.0mm
Indoor/Outdoor
Indoor
Input Voltage
15V DC
Limited Warranty
2-Year
Maximum Motion Sensing Distance
60m
Mount Type
Wall Mount
Product Series
VE700
Product Type
Motion Sensor
Sensor Type
Infrared Sensor
TAA Compliant
No
Weight
275.00g
Width
93.0mm
Wireless Technology
Infrared
Additional Information
High density ''Step & Gliding Focus Multi Curtain'' mirrorPlug-in electronicsSealed optics''Vector Verified Enhanced'' detection algorithmSelectable range with full undercrawl detectionOn-site individual coverage pattern selection3 alarm se
Colour
White
Manufacturer
Carrier
Maximum Viewing Angle
86°
Minimum Motion Sensing Distance
20m
Passive Infrared Sensor (PIR)
Yes
WEEE Compliant
Compliant
